Home › Hyundai › 2012 › Azera › Repair and Diagnosis › Engine Mechanical › Mechanical › Timing System › Drive Belt Tensioner › Components and Components Location › Components

Components and Components Location: Components

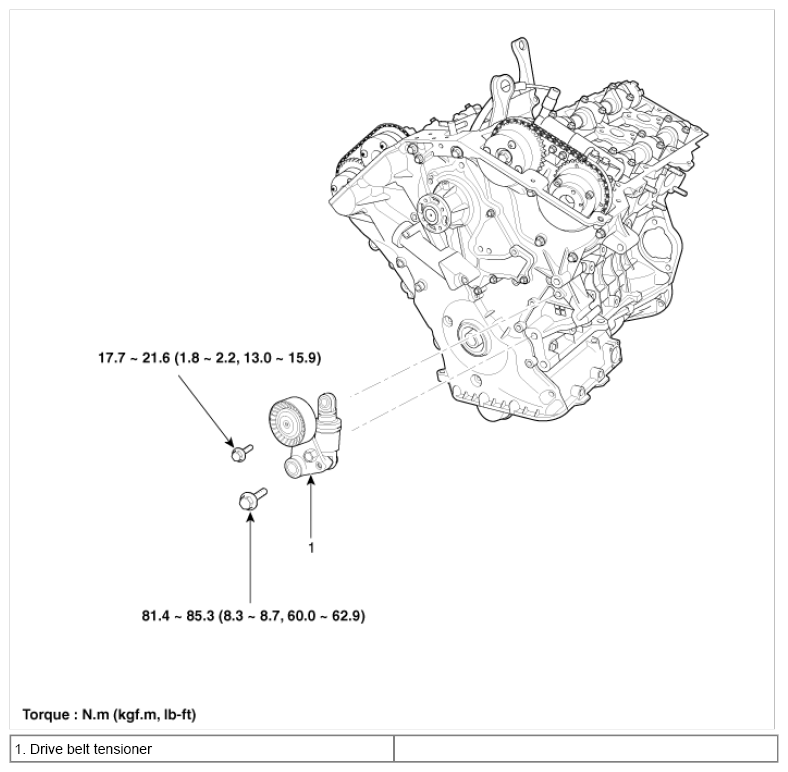

Fig 1: Drive Belt Tensioner With Torque Specifications
G08809128Courtesy of HYUNDAI MOTOR AMERICA
