Repair Procedures: Installation

Using SST (09231-3C100), install timing chain cover oil seal.

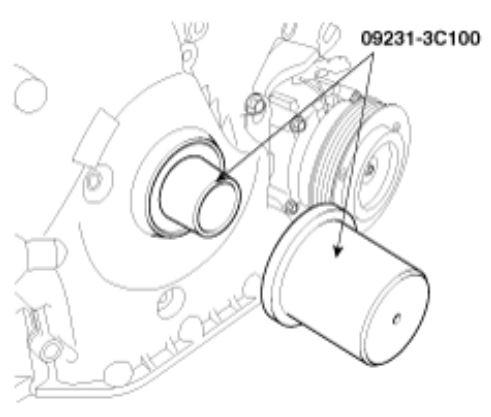

Fig 1: Installing Timing Chain Cover Oil Seal Using Special Tool
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Always use new oil seal.
Install the crankshaft damper pulley.
(Refer to "CRANKSHAFT DAMPER PULLEY ")
