Removal and Installation

  1. Remove the drive belt.

    (Refer to Timing System - "DRIVE BELT ")

  2. Remove the drive belt idler (A).

    Tightening torque:  52.9 ~ 57.9N.m (5.4 ~ 5.9kgf.m, 39.1 ~ 42.7lb-ft)

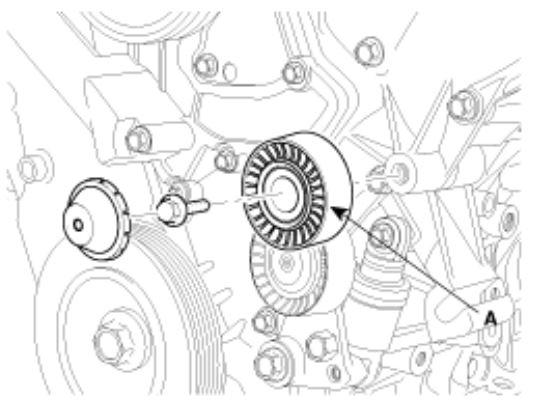

    Fig 1: Removing Drive Belt Idler
    G08809127Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is reverse order of removal
