Repair Procedures: Removal

  1. Lift the vehicle and support the fuel tank with a jack.

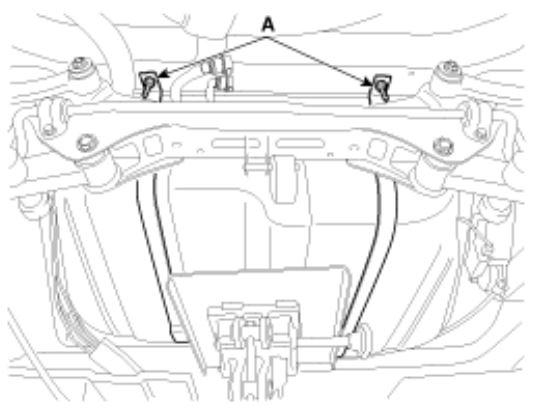

  2. Remove the nuts (A) from fuel tank.
    Fig 1: Identifying Fuel Tank Nuts
    G08809841Courtesy of HYUNDAI MOTOR AMERICA

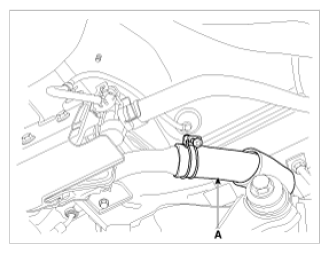

  3. Disconnect the fuel filler hose (A).
    Fig 2: Identifying Fuel Filler Hose
    G08809842Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the fuel shut off valve (A).
    Fig 3: Removing Fuel Shut Off Valve
    G08809843Courtesy of HYUNDAI MOTOR AMERICA
    Fig 4: Identifying Fuel Shut Off Valve
    G08809844Courtesy of HYUNDAI MOTOR AMERICA
