Mode $06 Data For DELPHI V6

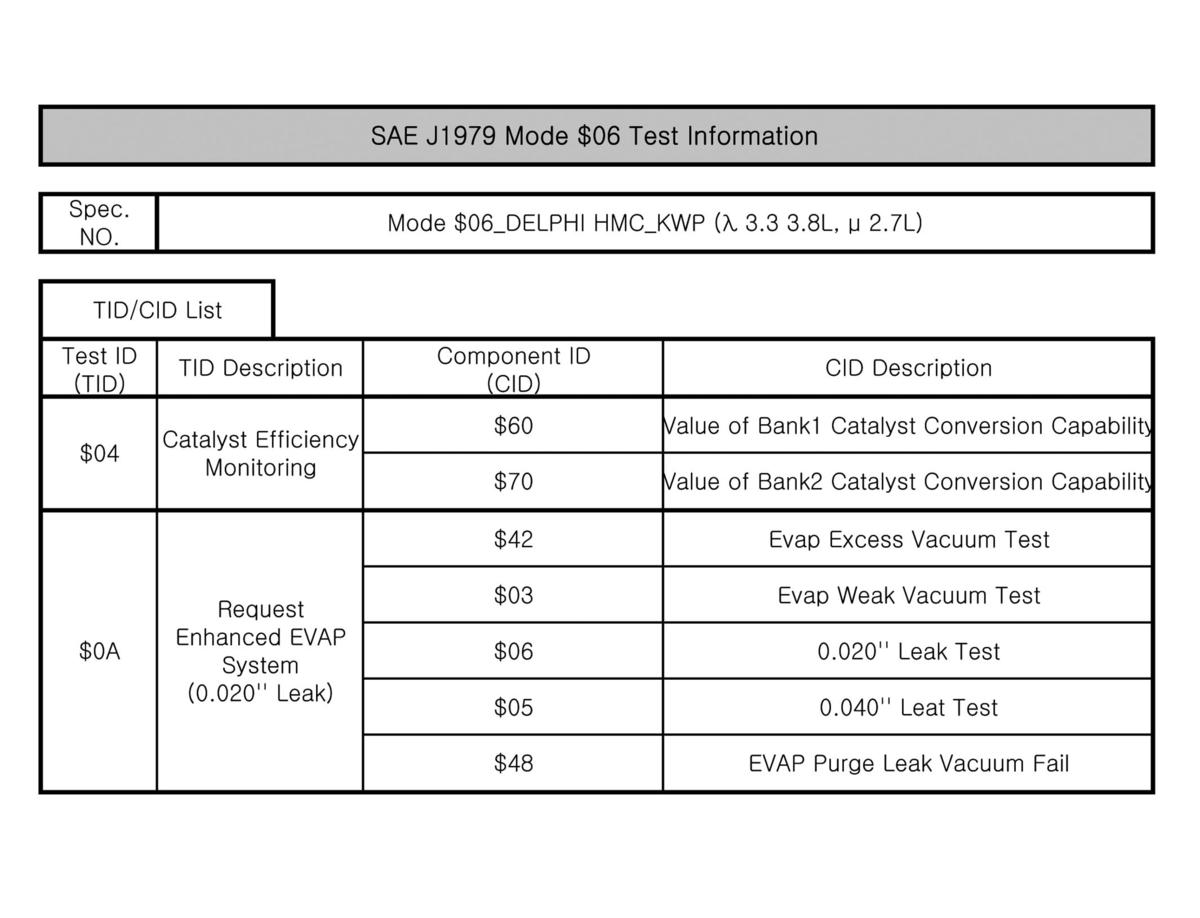

Fig 1: Mode $06 Test Identification

Courtesy of HYUNDAI MOTOR CO.

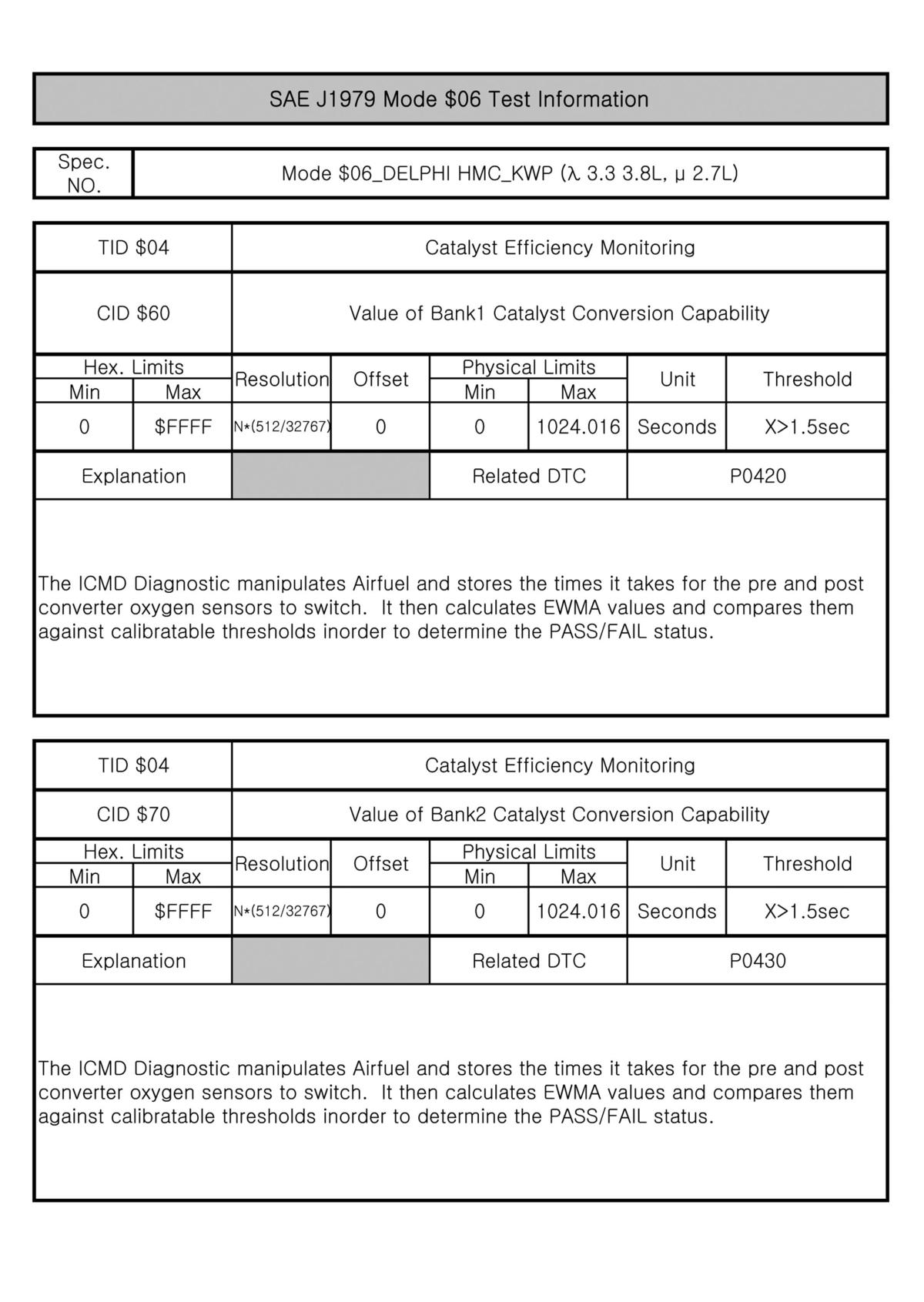

Fig 2: Mode $06 Test Information (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

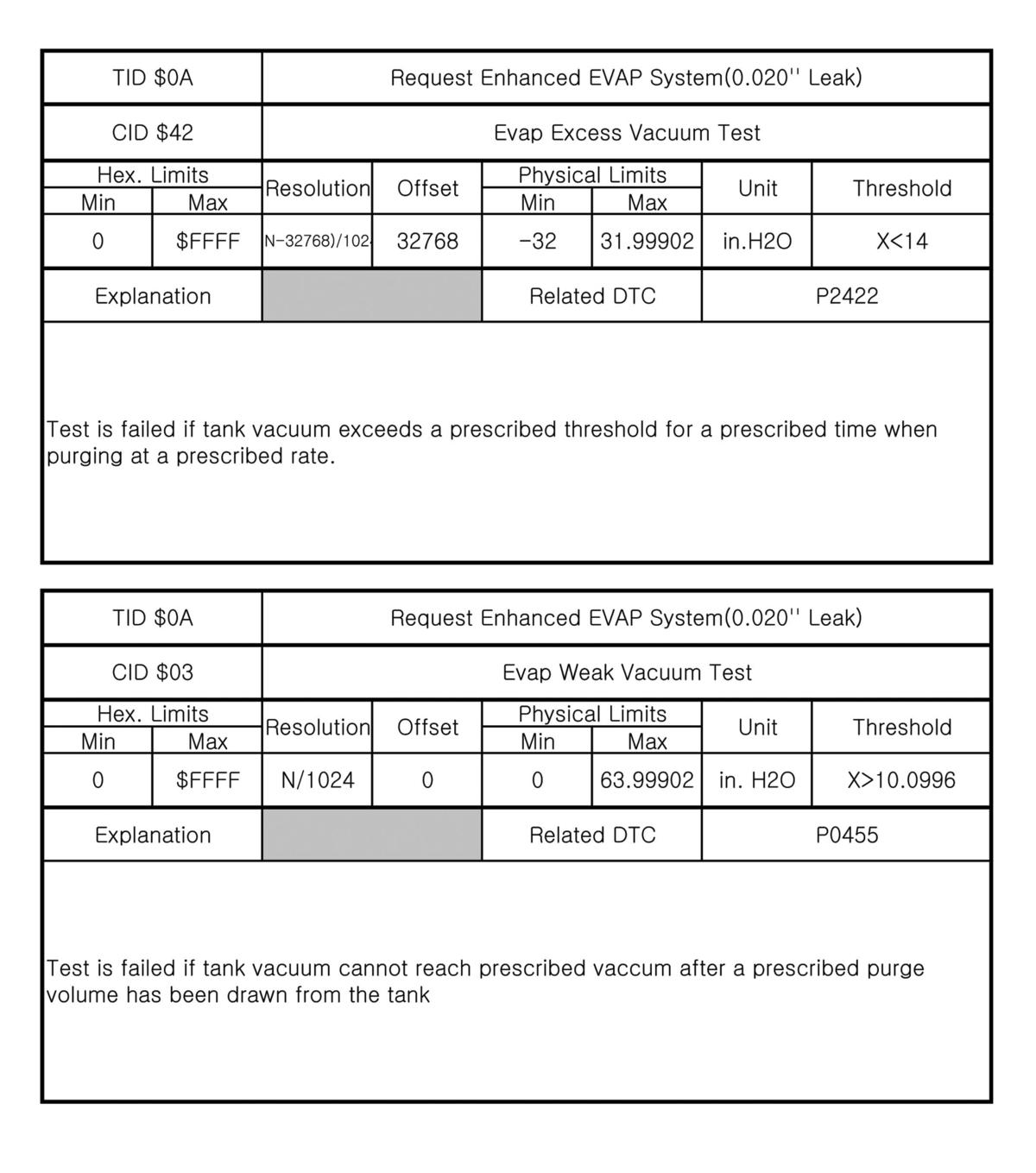

Fig 3: Mode $06 Test Information (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

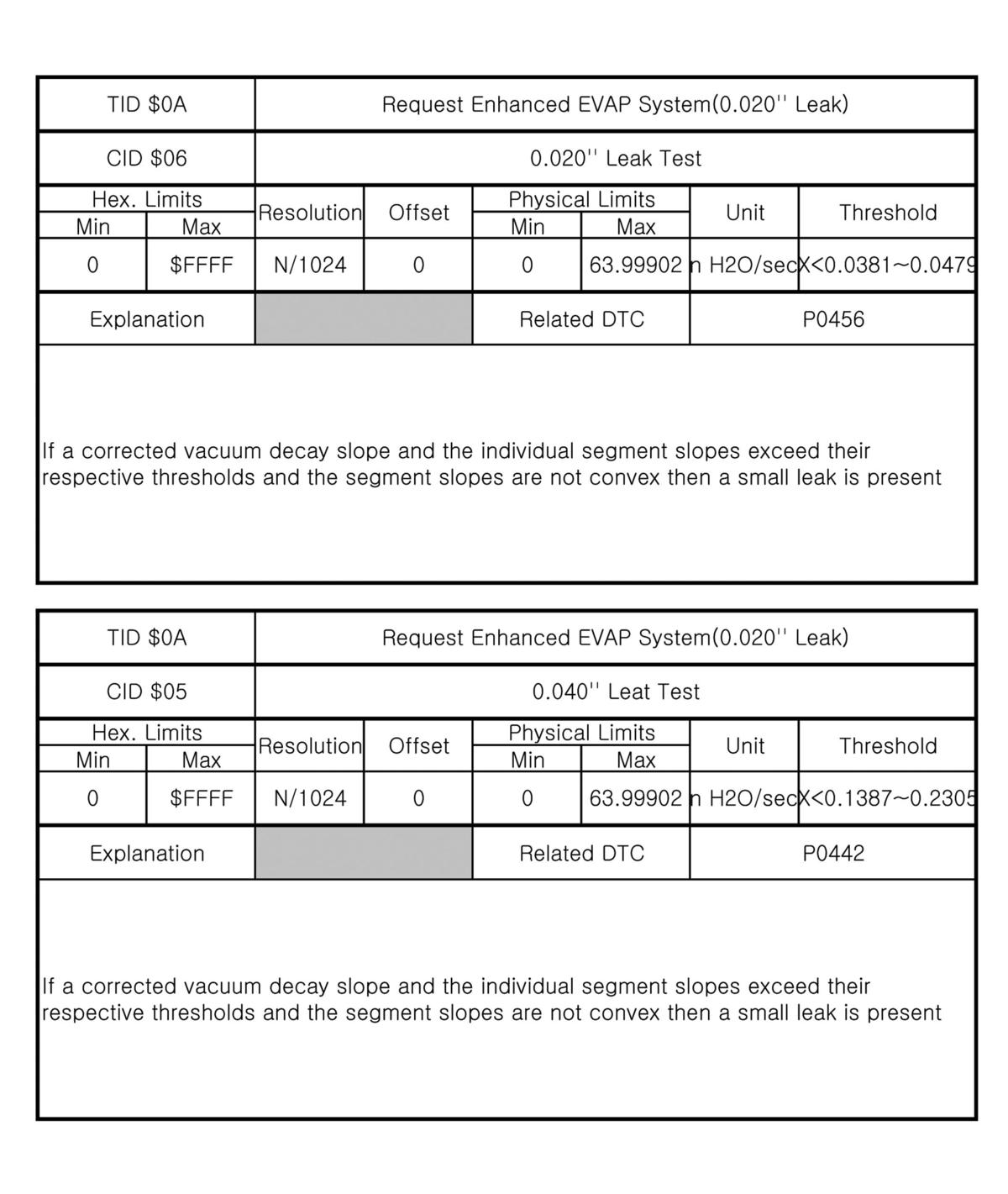

Fig 4: Mode $06 Test Information (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

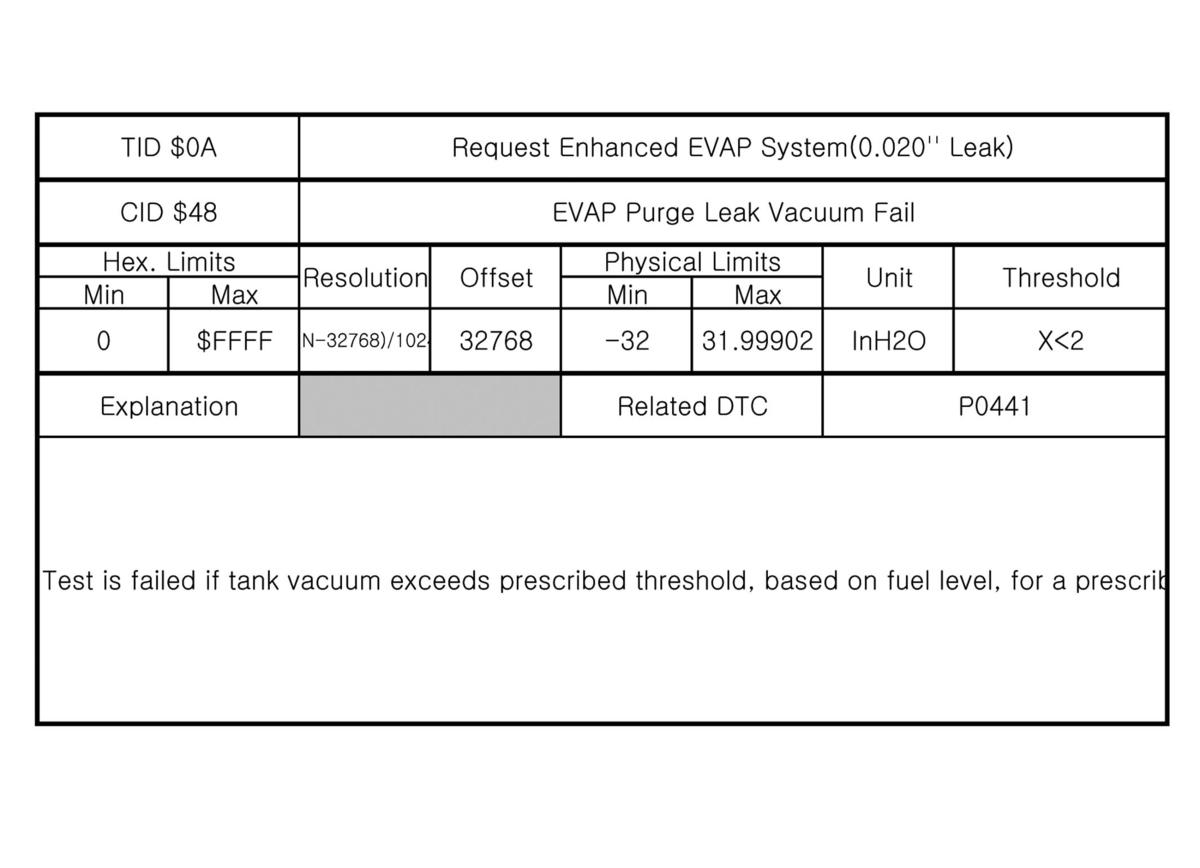

Fig 5: Mode $06 Test Information (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
