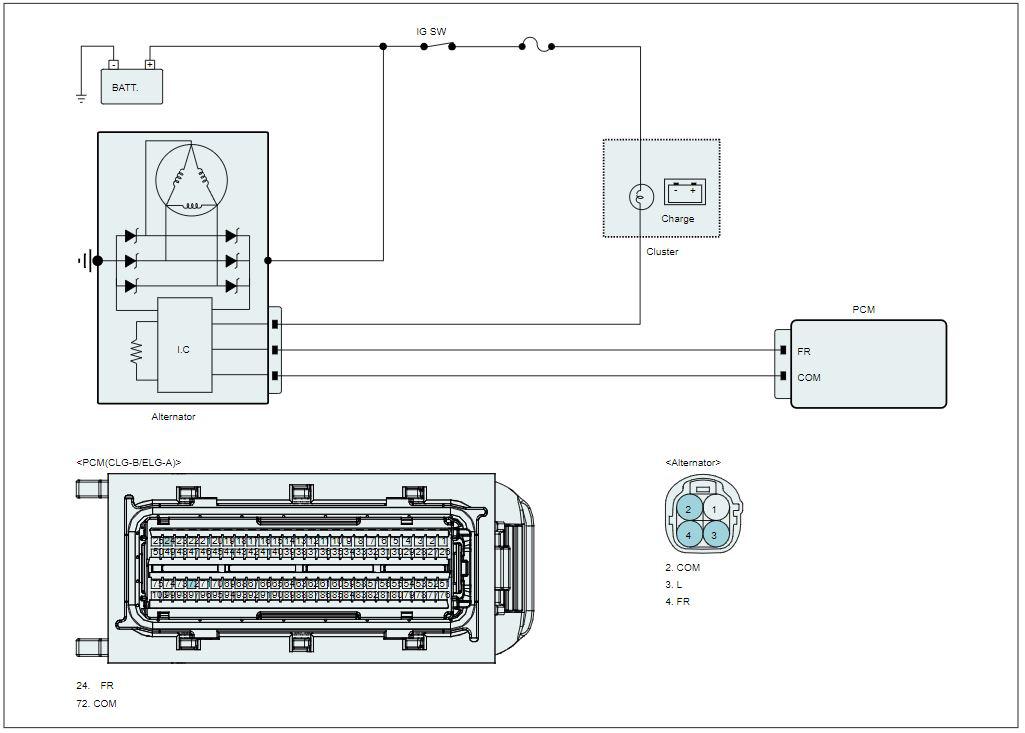

Home › Hyundai › 2012 › Azera › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (3 Of 3) › DTC P0620: Alternator Control Circuit › General Information › Diagnostic Circuit Diagram
