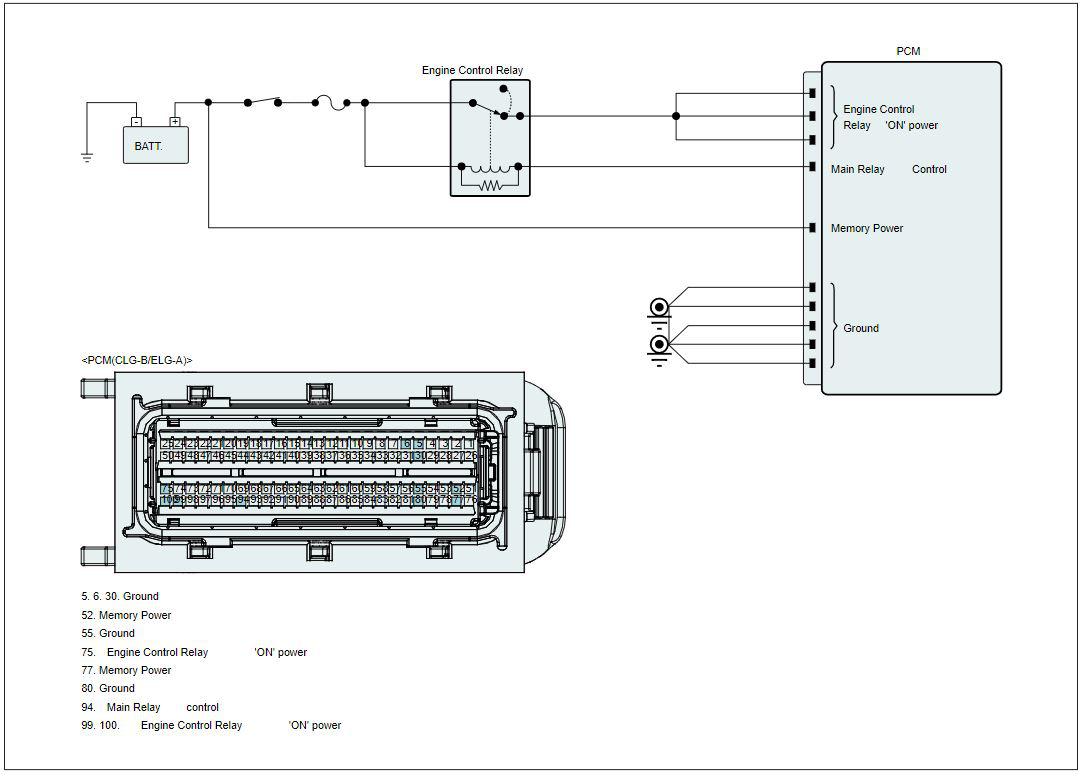

Home › Hyundai › 2012 › Azera › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (3 Of 3) › DTC P0685: ECM/PCM Power Relay Control Circuit/Open › General Information › Diagnostic Circuit Diagram
