Engine Control System Diagnosis (3 Of 3)
›
DTC P2229: Barometric Pressure Circuit High Input
›
General Information
›
Signal Waveform & Data
Signal Waveform & Data

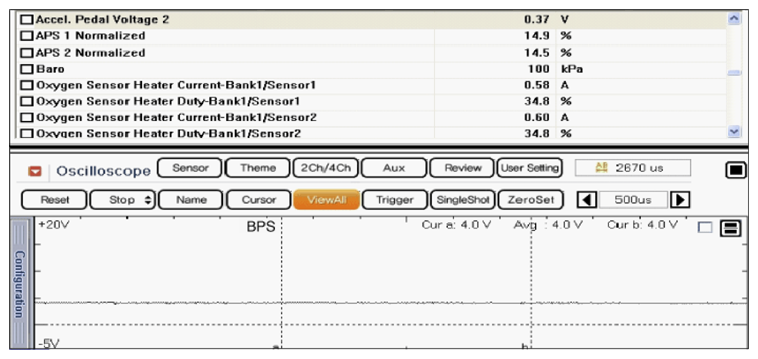

Fig 1: BPS Normal Data And Waveform (At Approx. 1 atm Condition)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
