Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad.

    (Refer to "MAIN CRASH PAD ASSEMBLY ")

  3. Disconnect the Intake actuator connector (A).
  4. Loosen the mounting screw and then remove the intake actuator (B).

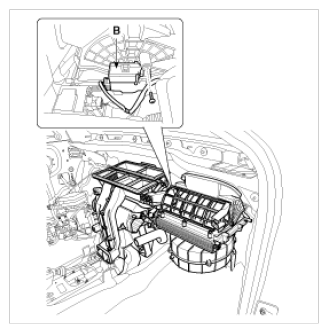

    Fig 1: Identifying Intake Actuator
    G08814837Courtesy of HYUNDAI MOTOR AMERICA
  5. Installation is the reverse order of removal.
