Repair Procedures: Replacement

Remove the front wheel & tire (A).
Tightening torque: 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

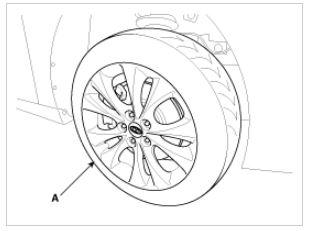

Fig 1: Identifying Front Wheel & Tire
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque: 98.1~117.7N.m (10.0~12.0kgf.m, 72.3 ~ 86.6lb-ft)

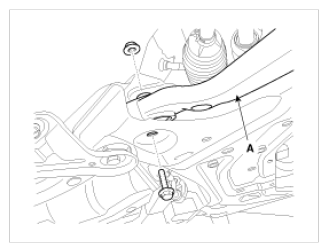

Fig 2: Identifying Lower Arm, Bolt & Nut
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolts & nuts than Remove the front lower arm (A).
Tightening torque

Front:

117.7~137.3N.m (12.0~14.0Kgf.m, 86.8~101.3lb-ft)

Rear:

156.9~176.5N.m (16.0~18.0Kgf.m, 115.7~130.2-ft)

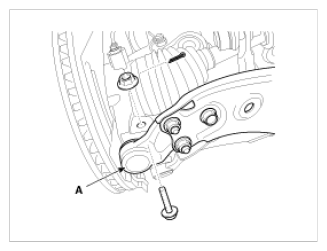

Fig 3: Identifying Front Lower Arm Bolt And Nut (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

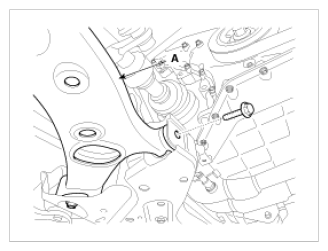

Fig 4: Identifying Front Lower Arm Bolt And Nut (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
