Home › Hyundai › 2012 › Azera › Repair and Diagnosis › Suspension › Front Suspension › Front Suspension System › Front Strut Assembly › Components and Components Location › Components

Components and Components Location: Components

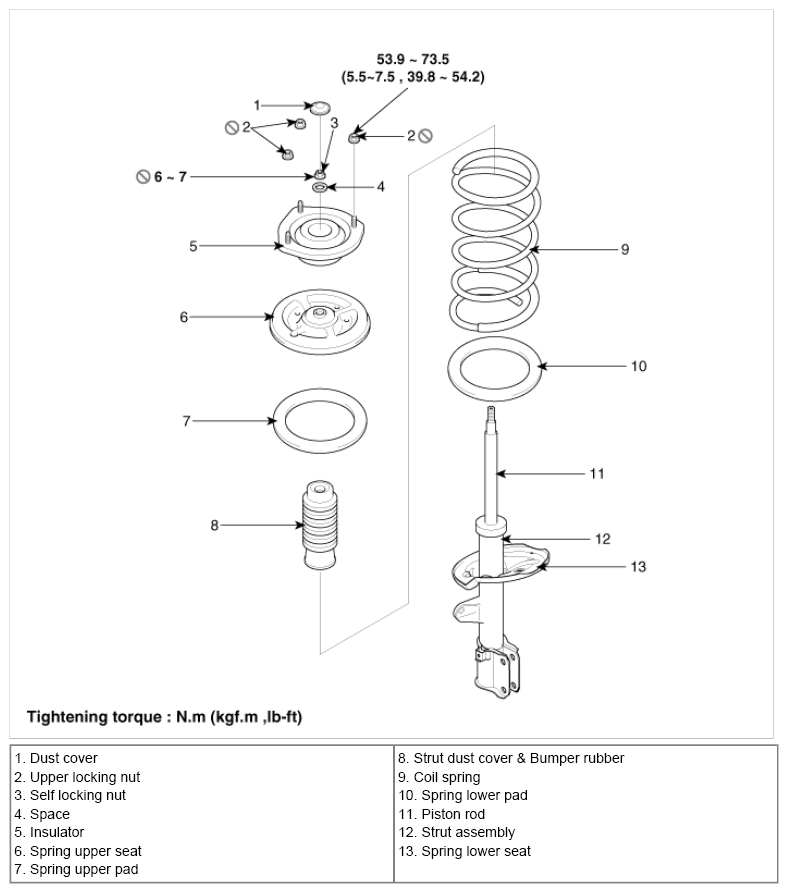

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications
G08810070Courtesy of HYUNDAI MOTOR AMERICA
