Repair Procedures: Disassembly

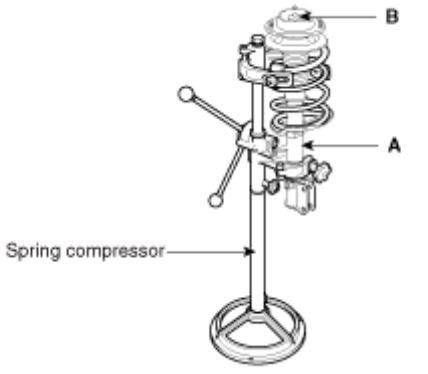

- Under the condition of fixed strut (A) on the SST (09546-26000), remove the front strut self-locking nut (B).
Courtesy of HYUNDAI MOTOR AMERICA
- Remove the insulator, spring seat, coil spring and dust cover from the strut assembly
