Repair Procedures: Replacement

Remove the front wheel & tire (A).
Tightening torque: 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

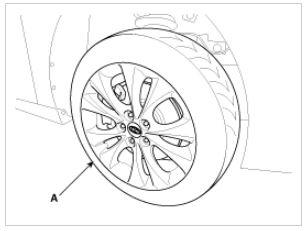

Fig 1: Identifying Front Wheel & Tire
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
Remove the variable damper connector (A) & bracket (B).

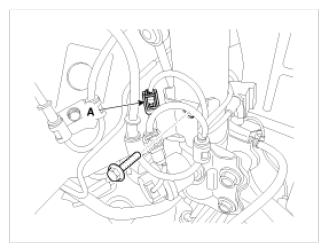

Fig 2: Identifying Variable Damper Connector
Courtesy of HYUNDAI MOTOR AMERICA

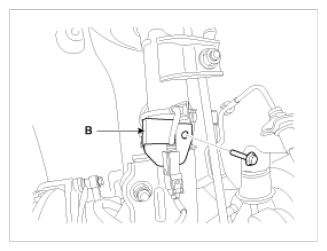

Fig 3: Identifying Variable Damper Connector Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the wheel speed sensor & bracket (A) from the front strut assembly by loosening bolts.

Fig 4: Identifying Wheel Speed Sensor Bracket And Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

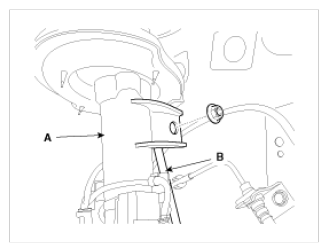

Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque: 98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

Fig 5: Identifying Stabilizer Link And Front Strut Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front strut assembly (A) with the knuckle by loosening the bolt & nut.
Tightening torque: 196.1~215.7N.m (20.0~22.0Kgf.m, 144.7 ~159.1lb-ft)

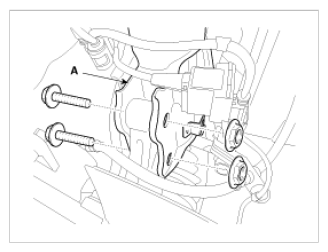

Fig 6: Identifying Front Strut Assembly And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the strut upper locking nuts (A) and than remove the front strut assembly.
Tightening torque: 53.9~73.5N.m (5.5~7.5Kgf.m, 34.8~54.2lb-ft)

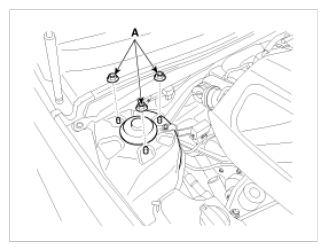

Fig 7: Identifying Strut Upper Locking Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
