Circuit Diagram

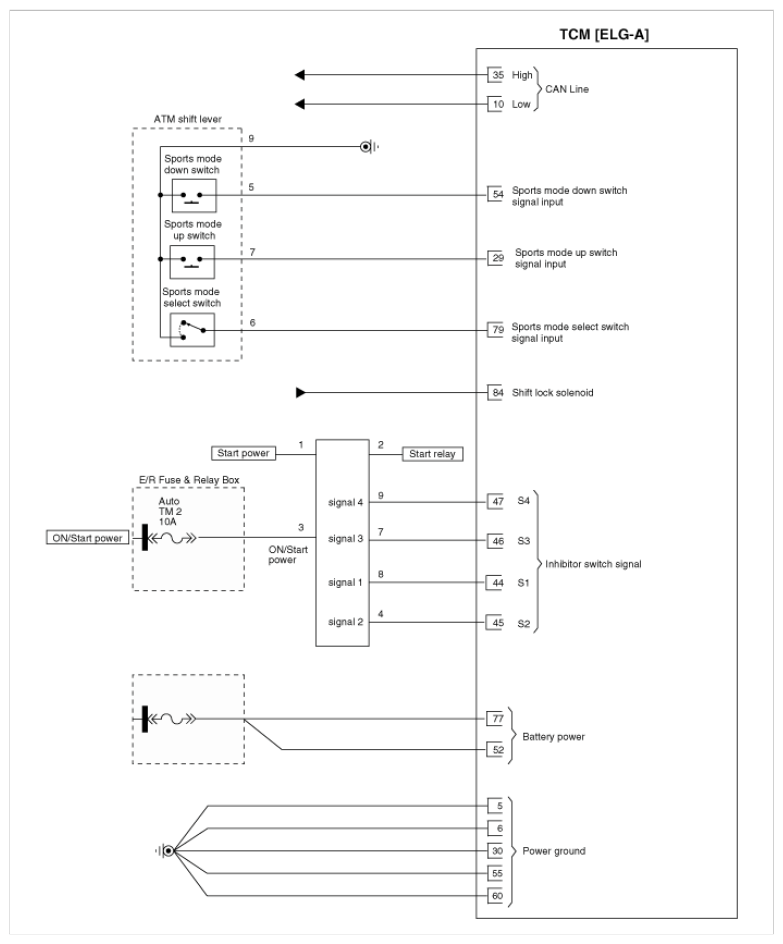

Fig 1: TCM Circuit Diagram (ELG-A) (1 Of 2)
G08809910Courtesy of HYUNDAI MOTOR AMERICA

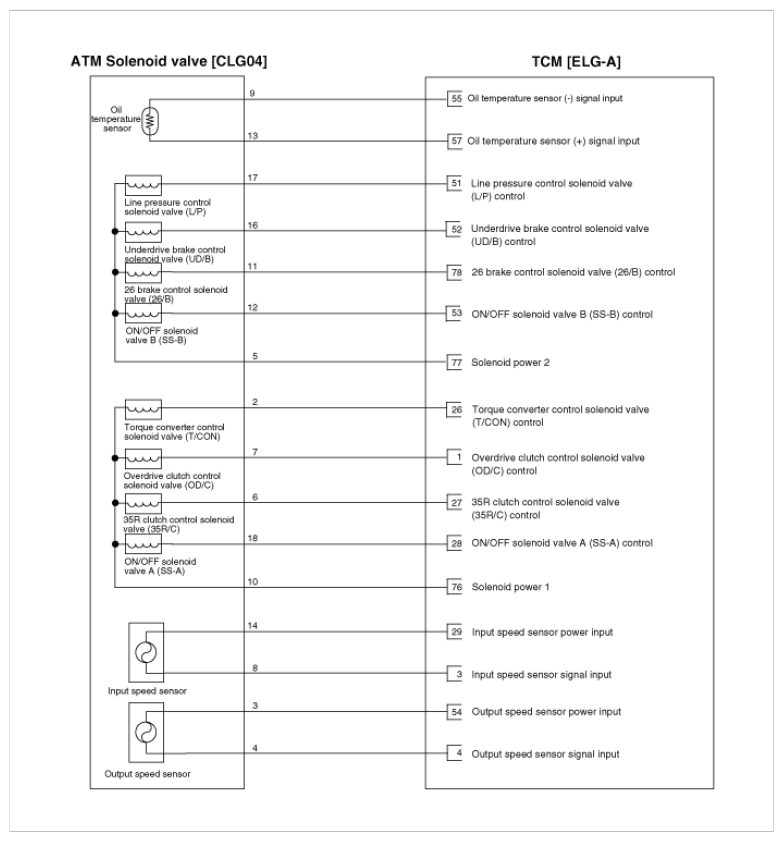

Fig 2: TCM Circuit Diagram (ELG-A) (2 Of 2)
G08809911Courtesy of HYUNDAI MOTOR AMERICA
