Front Engine Hanger
Front Engine Hanger
Remove the front engine hanger (A)
Tightening torque:
44.1 ~ 53.6N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

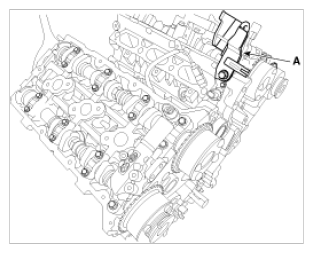

Fig 1: Identifying Front Engine Hanger
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
