Components and Components Location: Components

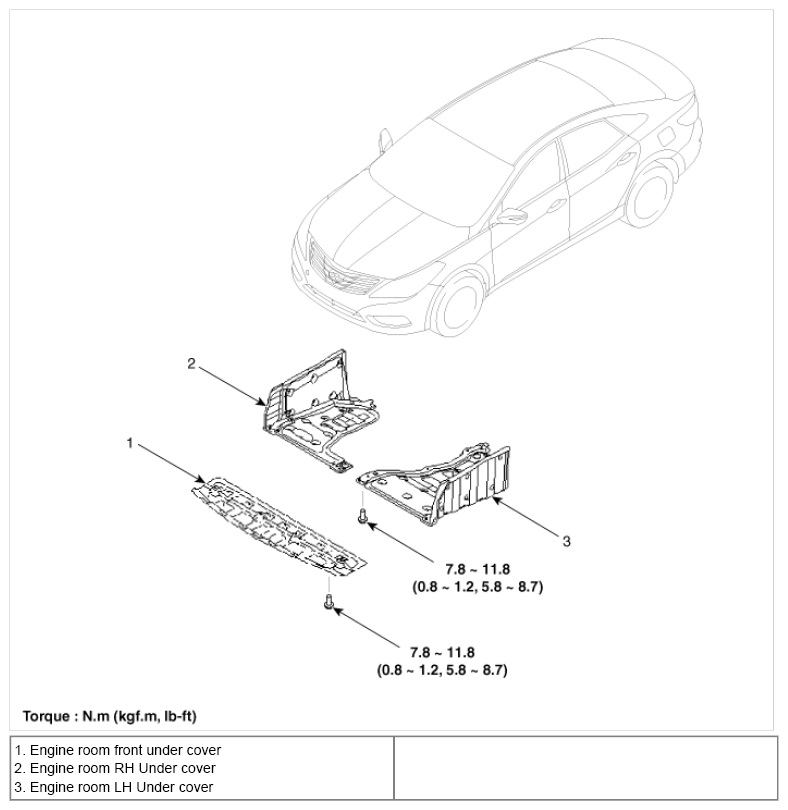

Fig 1: Engine Room Front, LH And RH Under Cover With Torque Specifications
G08809102Courtesy of HYUNDAI MOTOR AMERICA
