Removal and Installation

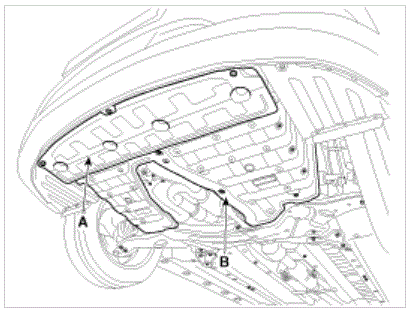

- Remove the engine room under cover (A) and (B).
Tightening torque:
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
NOTE:- When removing the under cover (B), unfasten the mounting bracket bolts and then remove the under cover and mounting bracket assembly.
- Installation is reverse order of removal
