Components and Components Location: Components

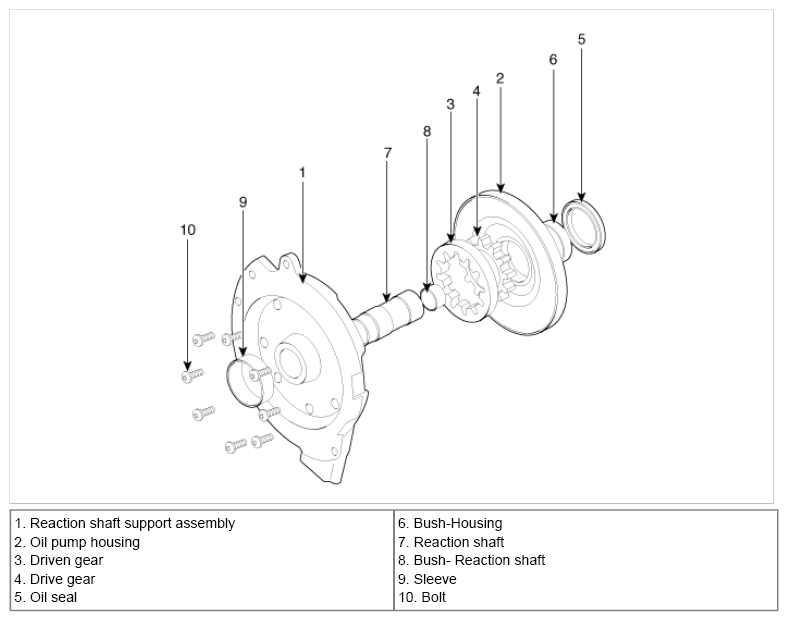

Fig 1: Automatic Transaxle Hydraulic System Oil Pump Components
G08809880Courtesy of HYUNDAI MOTOR AMERICA
