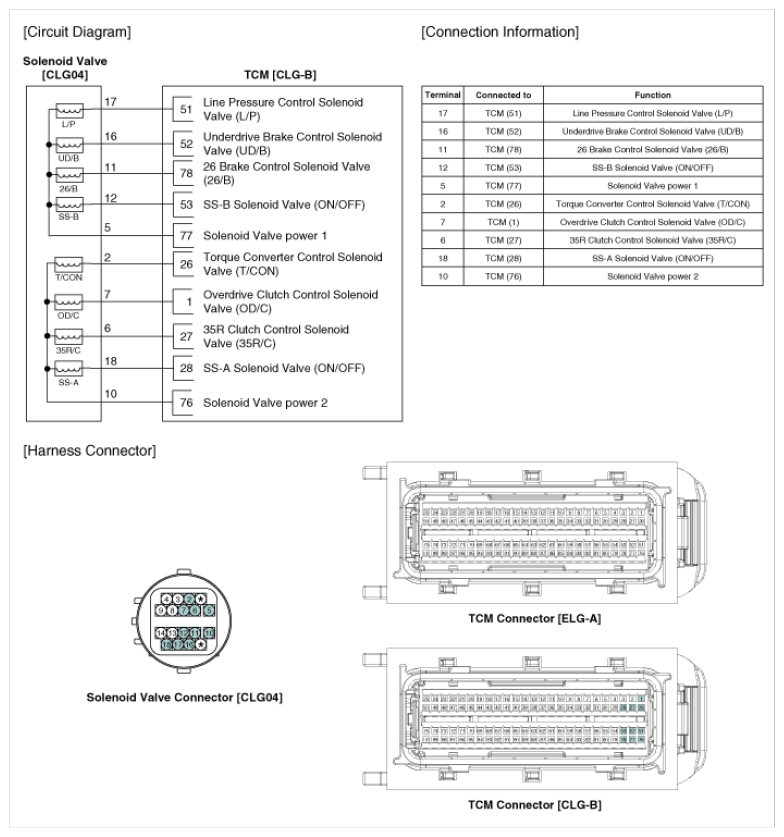

Home › Hyundai › 2012 › Azera › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Torque Converter Control Solenoid Valve (T/CON_VFS) › Schematic Diagrams › Circuit Diagram
