Repair procedures: Inspection

  1. Check the audio remote control switch for resistance between connector 3 and 4 in each switch position.

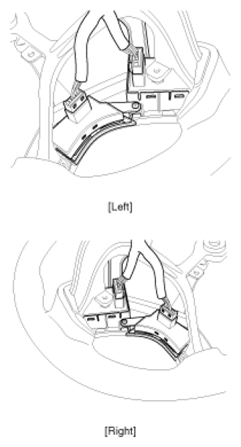

    Fig 1: Checking Audio Remote Control Switch
    G07265005Courtesy of HYUNDAI MOTOR CO.

    [Audio (Left)]

    TERMINALS REFERENCE

    Switch Connector terminal Resistance
    (±5%)
    MUTE 3-4 3.11 kΩ
    Volume up 3-4 4.61 kΩ
    Volume down 3-4 6.81 kΩ

    [Audio (Right)]

    RESISTANCE SPECIFICATION

    Switch Connector terminal Resistance
    (±5%)
    SEEK up 3-4 430 Ω
    SEEK down 3-4 1.1 kΩ
    Mode 3-4 2.11 kΩ

    [Bluetooth (Left)]

    RESISTANCE SPECIFICATION

    Switch Connector terminal Resistance
    (±5%)
    Call 3-4 10.71 kΩ
    Hang up 3-4 18.91 kΩ
    Voice 3-4 40.91 kΩ
