Home › Hyundai › 2012 › Elantra GLS, Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Smart Key System › Components and Components Location › Component Location (1)

Component Location (1)

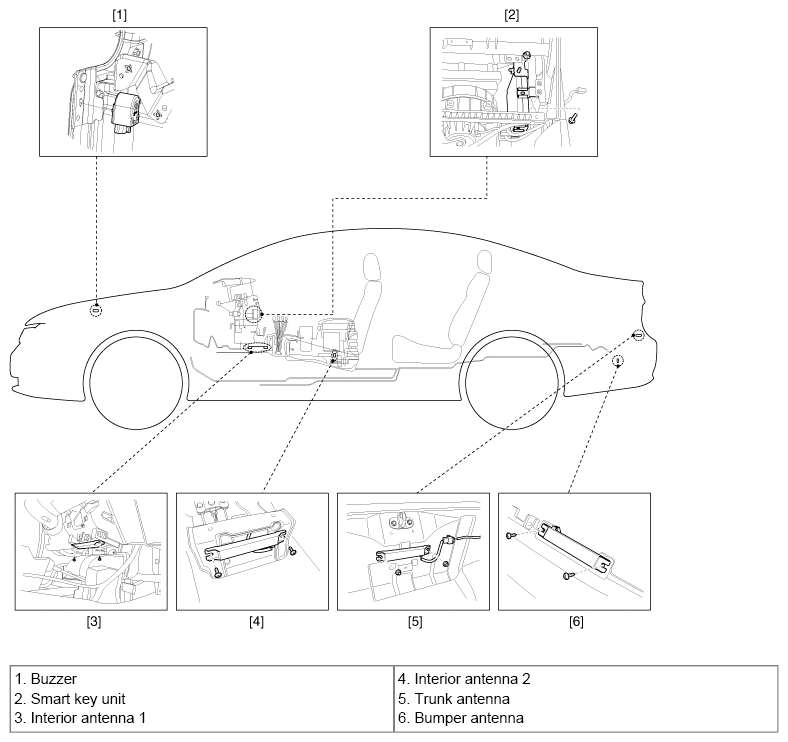

Fig 1: Smart Key Unit Component Location (1 Of 2)
G07256487Courtesy of HYUNDAI MOTOR CO.
