Power Window Switch
›
Schematic Diagrams
›
Circuit Diagram
›

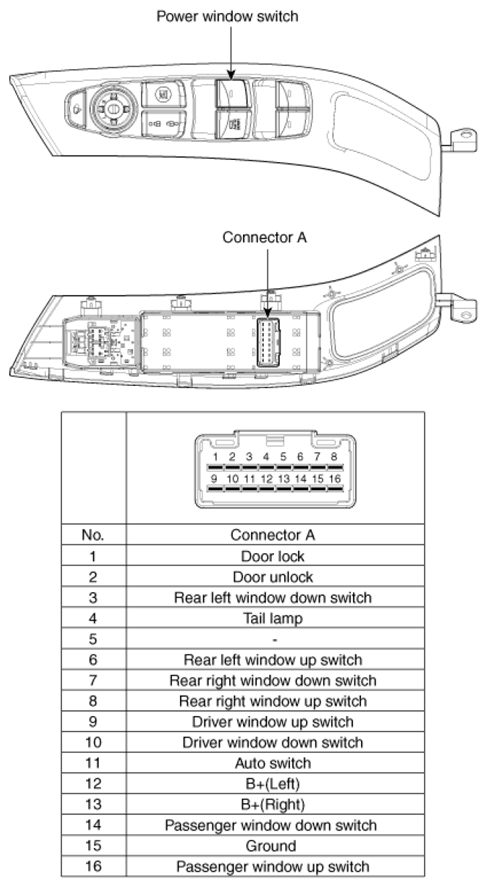

Driver Power Window Switch
Driver Power Window Switch
Fig 1: Driver Power Window Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
