Home › Hyundai › 2012 › Elantra GLS, Automatic Trans › Repair and Diagnosis › Drivelines & Axles › Wheel Hubs › Front Axle Assembly › Front Hub-Knuckle › Components and Components Location › Components

Components and Components Location: Components

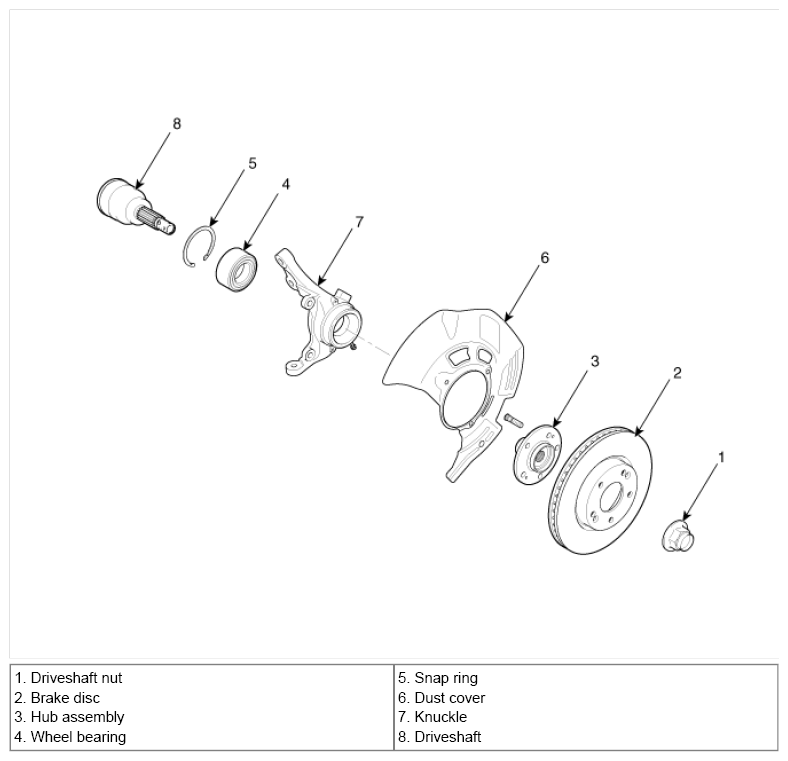

Fig 1: Identifying Front Axle Assembly Components
G07264349Courtesy of HYUNDAI MOTOR CO.
