Components and Components Location: Components

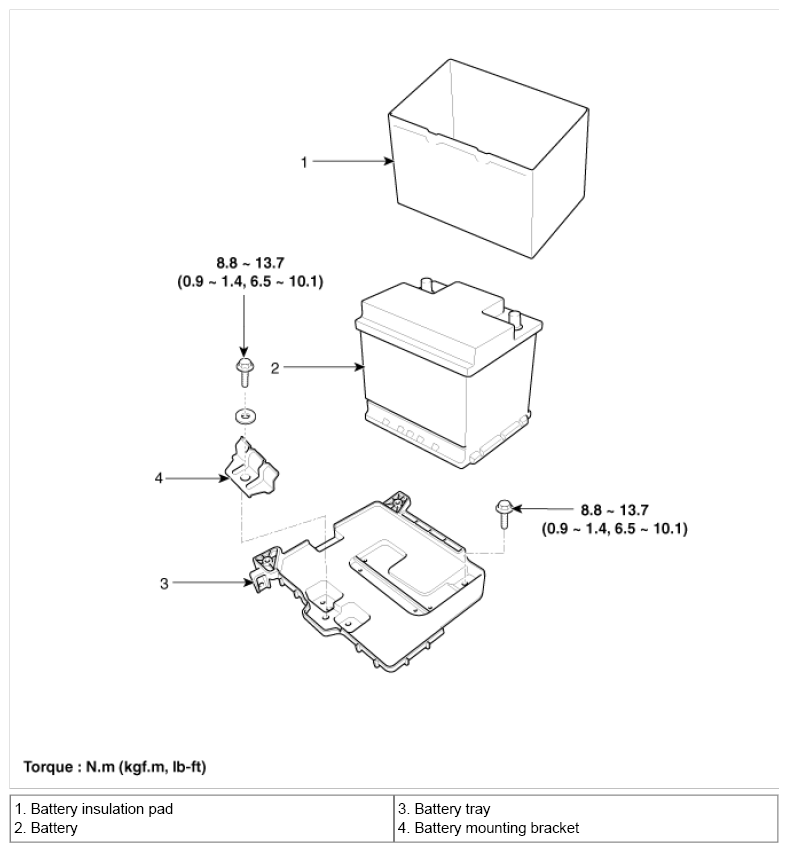

Fig 1: Battery Components With Torque Specifications
G07263953Courtesy of HYUNDAI MOTOR CO.
