Home › Hyundai › 2012 › Elantra GLS, Automatic Trans › Repair and Diagnosis › Engine Mechanical › Engine Lubrication System › Oil Pump › Components and Components Location › Components

Components and Components Location: Components

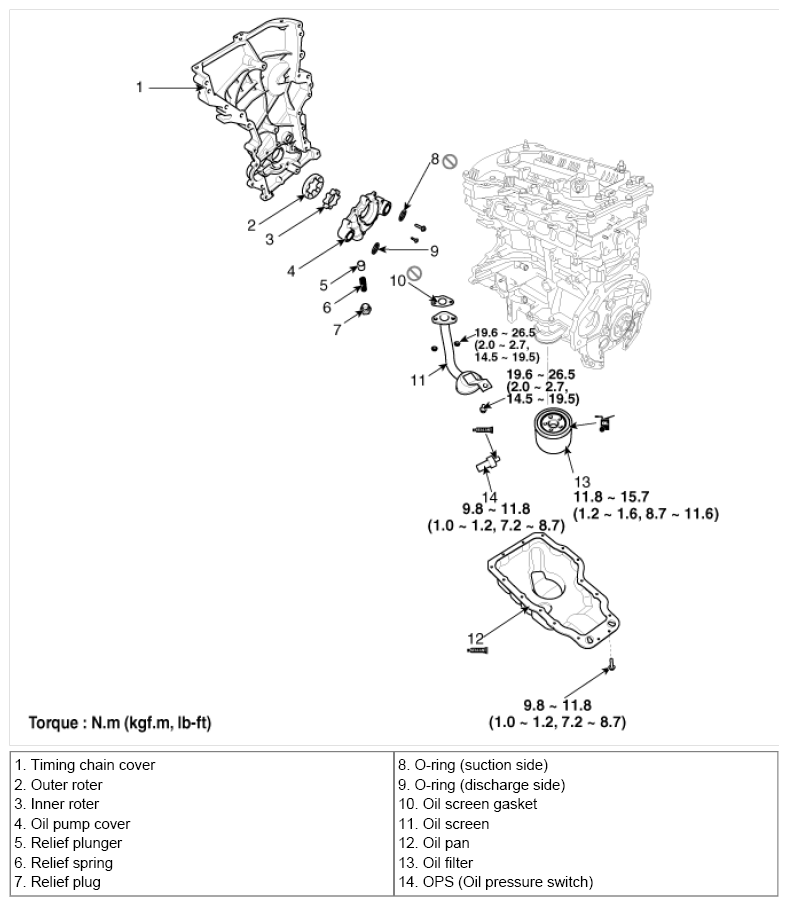

Fig 1: Oil Pump Replacement Components With Torque Specifications
G07263842Courtesy of HYUNDAI MOTOR CO.
