Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the VCMA connector (A).

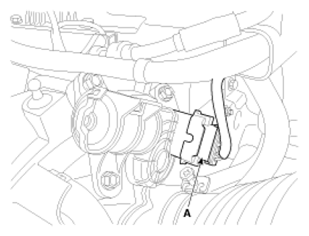

    Fig 1: Identifying VCMA Connector
    G07264131Courtesy of HYUNDAI MOTOR CO.
  3. Remove the VCMA (A) after removing 3 installation bolts.

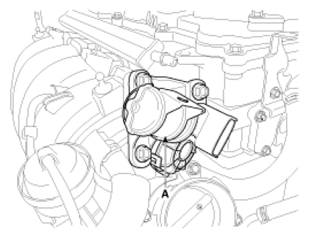

    Fig 2: Identifying VCMA
    G07264132Courtesy of HYUNDAI MOTOR CO.
