Component Inspection

  1. Measure the resistance between signal terminal and ground terminal of ECTS connector. (Component side)

    Specification

    RESISTANCE SPECIFICATION

    Temp. (°C) Temp. (°F) Resistance (kΩ) Temp. (°C) Temp. (°F) Resistance (kΩ)
    -20 -4 14.1 ~ 16.8 40 104 Approx. 1.2
    0 32 Approx. 5.8 60 140 Approx. 0.6
    20 68 2.3 ~ 2.6 80 176 Approx. 0.3

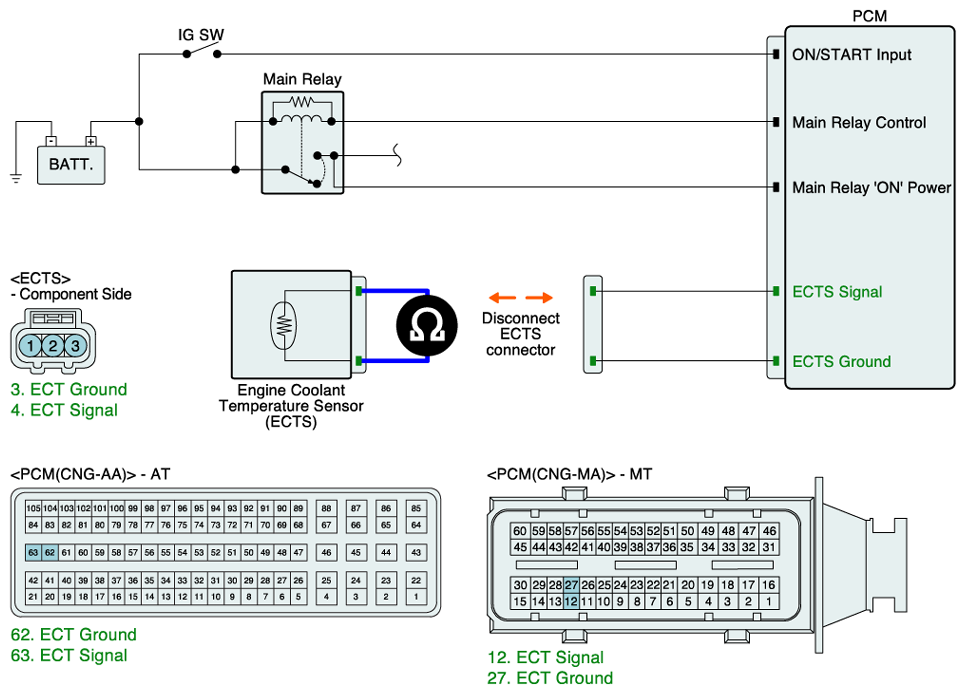

    Fig 1: Measuring Resistance Between Signal Terminal And Ground Terminal Of ECTS Connector
    G07272240Courtesy of HYUNDAI MOTOR CO.
  2. Is the resistance within the specification?

    YES

    Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Check ECTS for contamination, deterioration, or damage. Substitute with a known-good ECTS and check for proper operation. If the problem is corrected, replace ECTS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
