Control Circuit Inspection

With ignition OFF, disconnect alternator connector.
Ignition "ON"&Engine "OFF"
Measure voltage between FR terminal of the alternator harness connector and chassis ground.
Specification: Approx. 9~10V

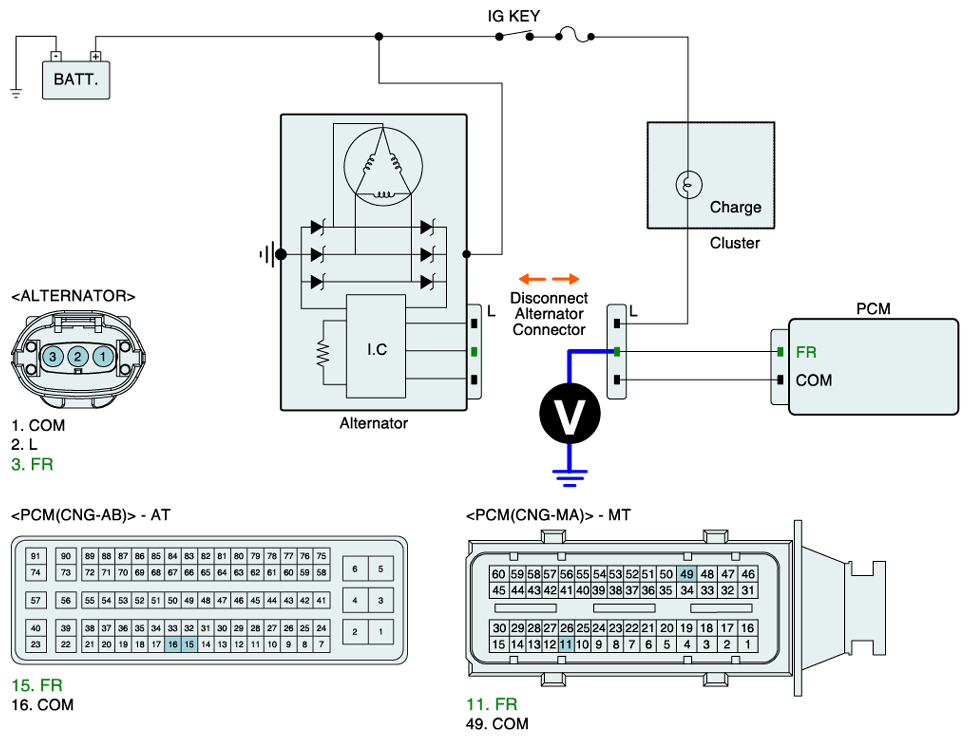

Fig 1: Measuring Voltage Between FR Terminal Of Alternator Connector And Chassis Ground.
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
YES

Go to next step as below.

NO

Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
