Diagnostic Circuit Diagram

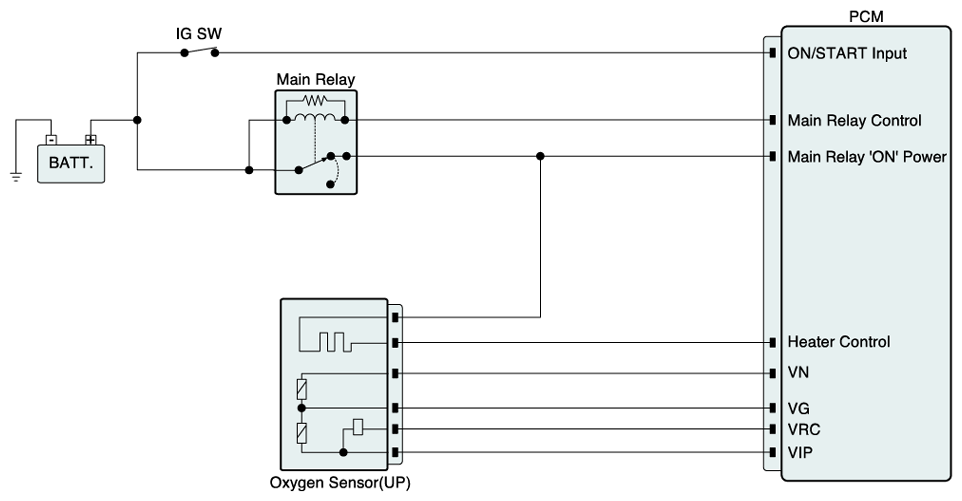

Fig 1: Oxygen Sensor - Diagnostic Circuit Diagram (1 Of 2)
G07272832Courtesy of HYUNDAI MOTOR CO.

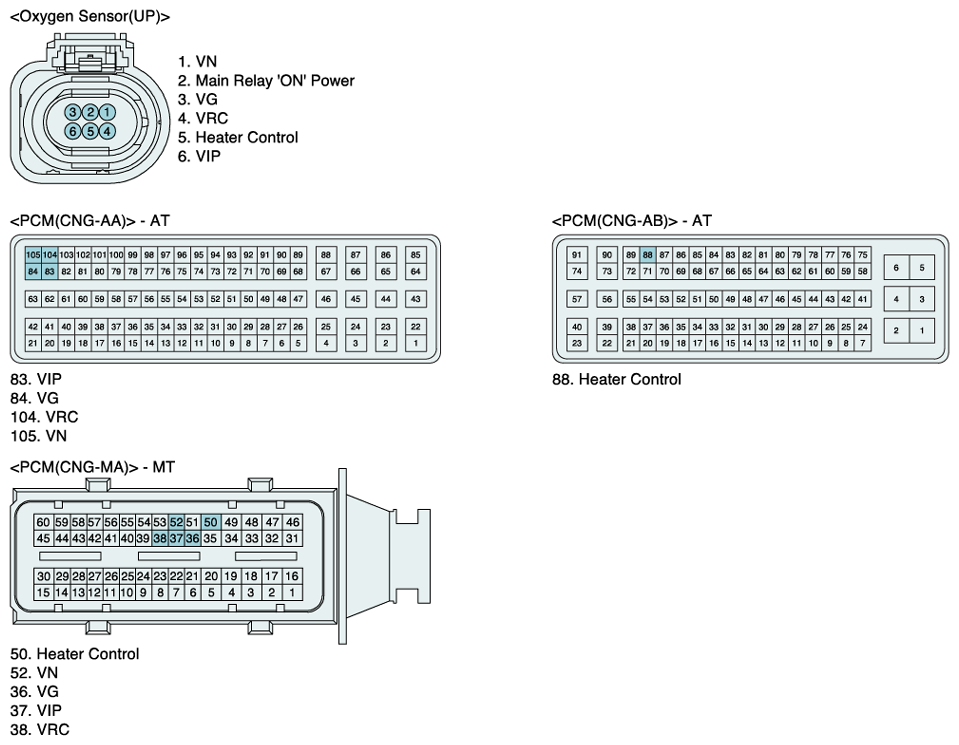

Fig 2: Oxygen Sensor - Diagnostic Circuit Diagram (2 Of 2)
G07272833Courtesy of HYUNDAI MOTOR CO.
