Diagnostic Circuit Diagram

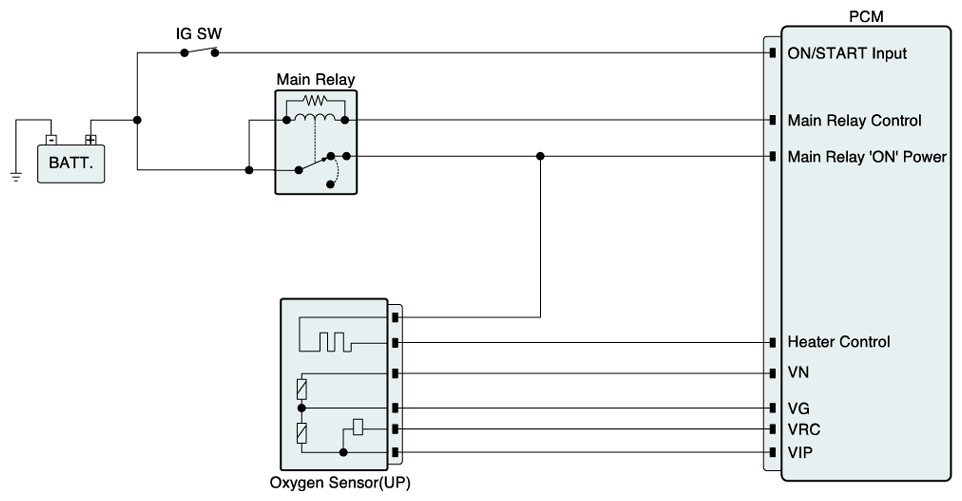

Fig 1: Oxygen Sensor (Bank1 Sensor1) - Diagnostic Circuit Diagram (1 Of 2)
G07272836Courtesy of HYUNDAI MOTOR CO.

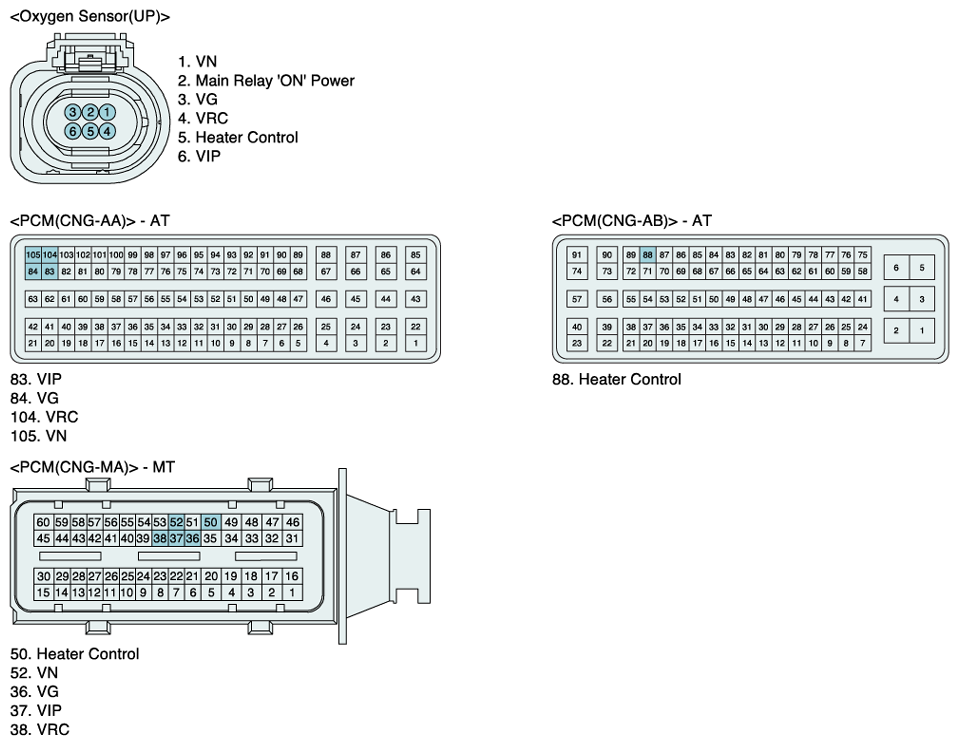

Fig 2: Oxygen Sensor (Bank1 Sensor1) - Diagnostic Circuit Diagram (2 Of 2)
G07272837Courtesy of HYUNDAI MOTOR CO.
