Components and Components Location: Components

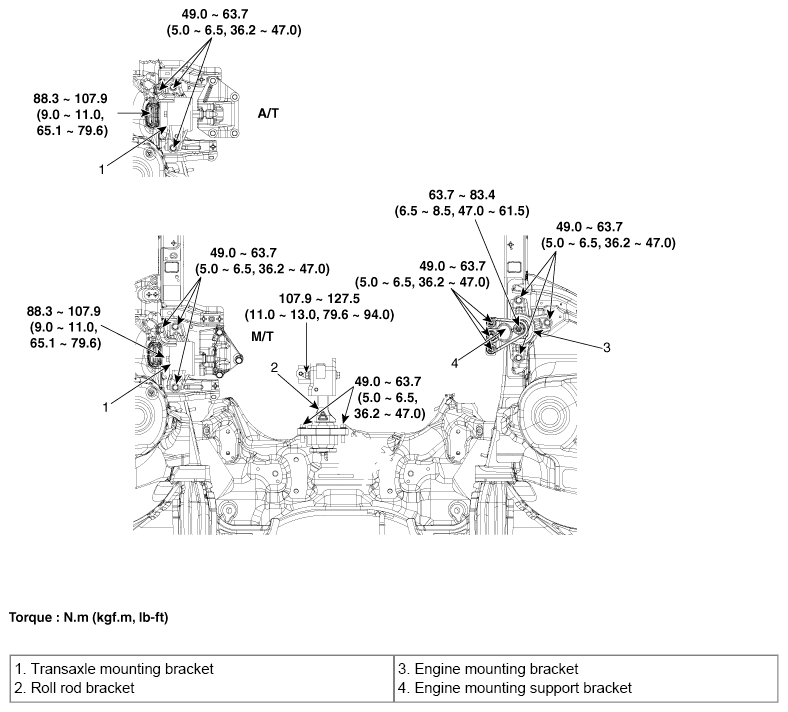

Fig 1: Engine Mounting Replacement Components With Torque Specifications
G07263545Courtesy of HYUNDAI MOTOR CO.
