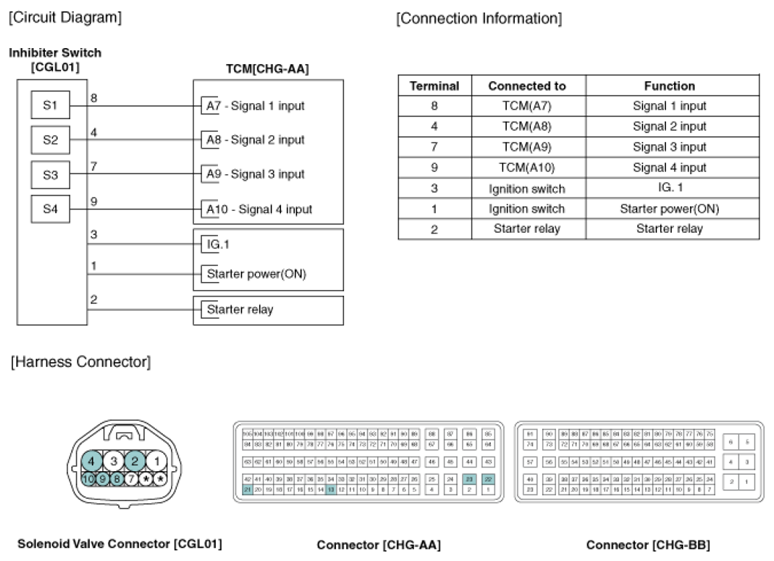

Home › Hyundai › 2012 › Elantra GLS, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Inhibitor Switch › Schematic Diagrams › Circuit Diagram
