Repair Procedures: Removal

NOTE: Replacing an on/off solenoid valve (SS-A, SS-B) does not require additional hydraulic pressure adjustment; however, the hydraulic pressure will need to be adjusted after replacing the VFS solenoid valve. If replacing the VFS solenoid valve; also replace the valve body assembly. (Refer to "VALVE BODY ")

Remove the battery and the battery tray. (Refer to "CHARGING SYSTEM ".)
Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. (Refer to "HYDRAULIC SYSTEM (FLUID) ")
Remove the valve body cover (A) and eyebolt (B).
Tightening torque:

13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

CAUTION: Always replace the gasket of the eyebolt use new one whenever loosening eyebolt.

Fig 2: Identifying Valve Body Cover
Courtesy of HYUNDAI MOTOR CO.

NOTE: Remove installation bolts in the engine room first and then remove others under the vehicle.
Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 3: Identifying Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR CO.

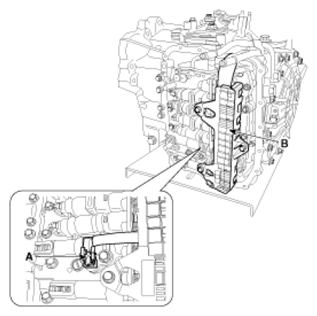

Remove the solenoid valve (B) after removing the solenoid support (A).

Fig 4: Identifying Solenoid Support
Courtesy of HYUNDAI MOTOR CO.
