Circuit Diagram

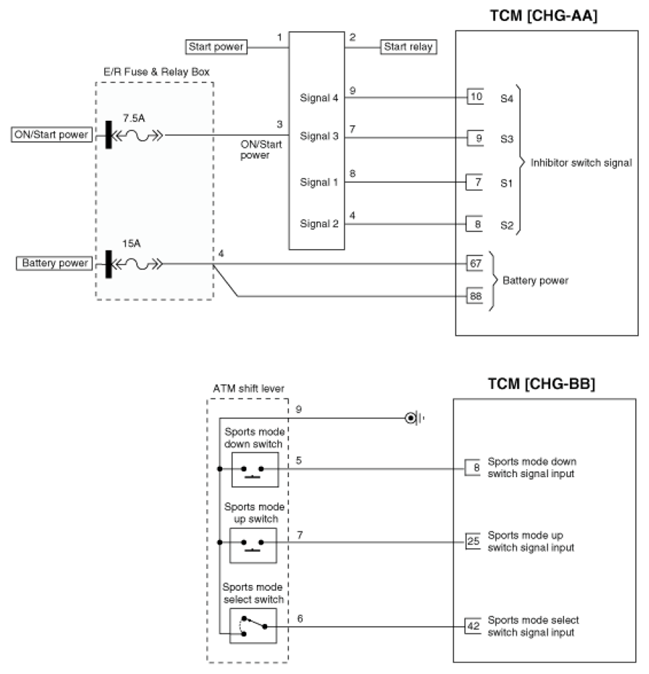

Fig 1: TCM - Circuit Diagram (1 Of 2)
G07264276Courtesy of HYUNDAI MOTOR CO.

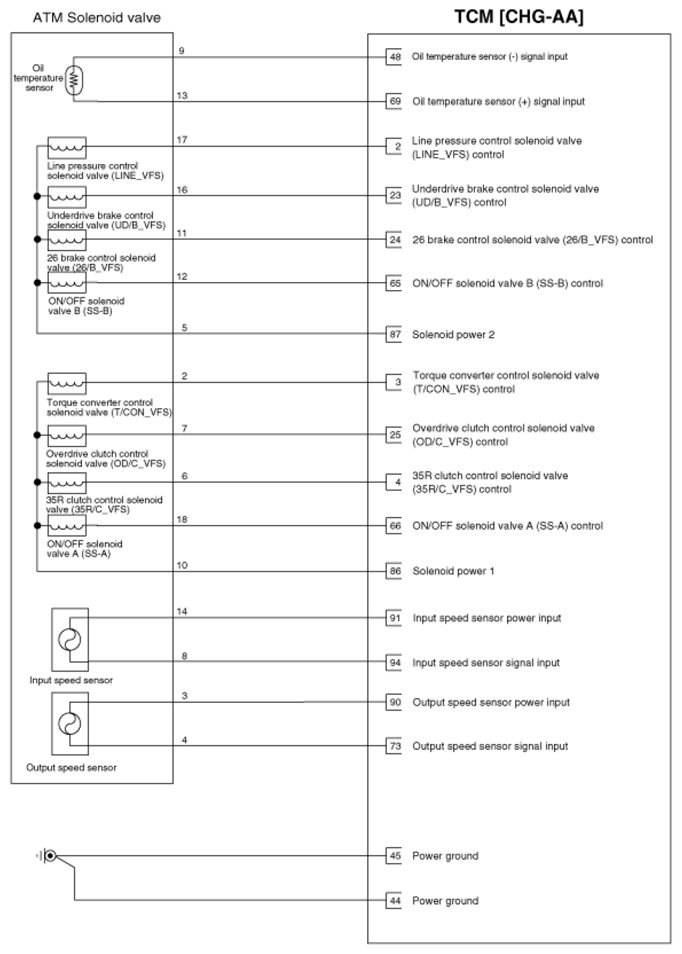

Fig 2: TCM - Circuit Diagram (2 Of 2)
G07264277Courtesy of HYUNDAI MOTOR CO.
