Repair Procedures: Inspection

Disconnect the back up lamp switch connector(A).

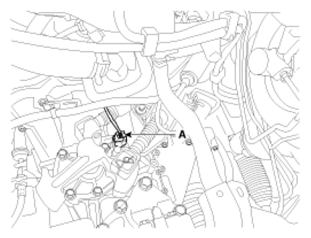

Fig 1: Identifying Back Up Lamp Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.
If necessary, repair or replace the backup lamp switch.

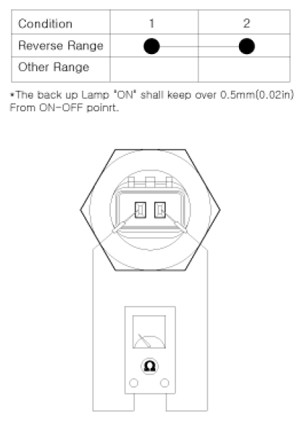

Fig 2: Back Up Lamp Switch Connector Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
