Audio Unit: Components: Notes

[RADIO/CD/MP3/XM(PA710)]

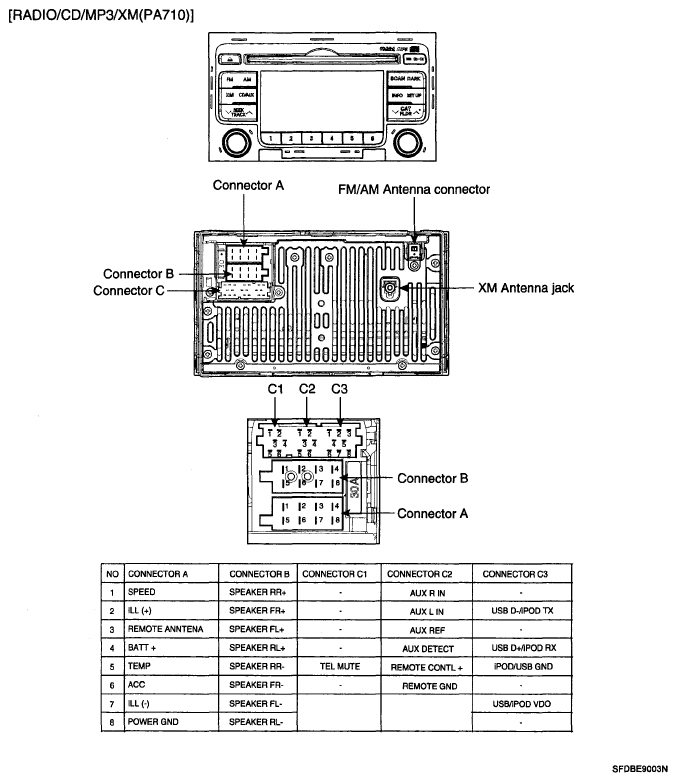

Fig 1: Identifying Audio Unit Connectors (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

[RADIO/CDC/MP3/XM(PA760)]

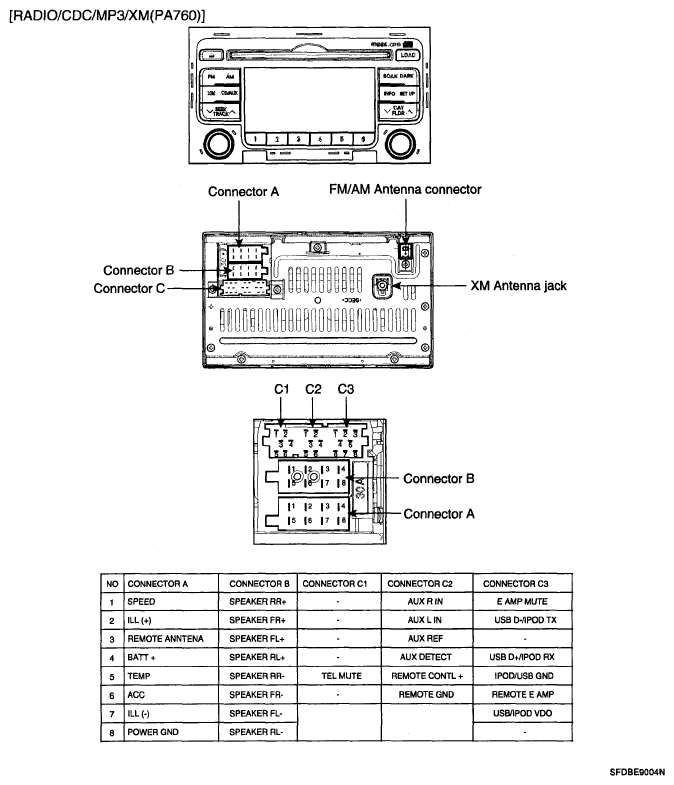

Fig 2: Identifying Audio Unit Connectors (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

[EXTERNAL AMPLIFIER]

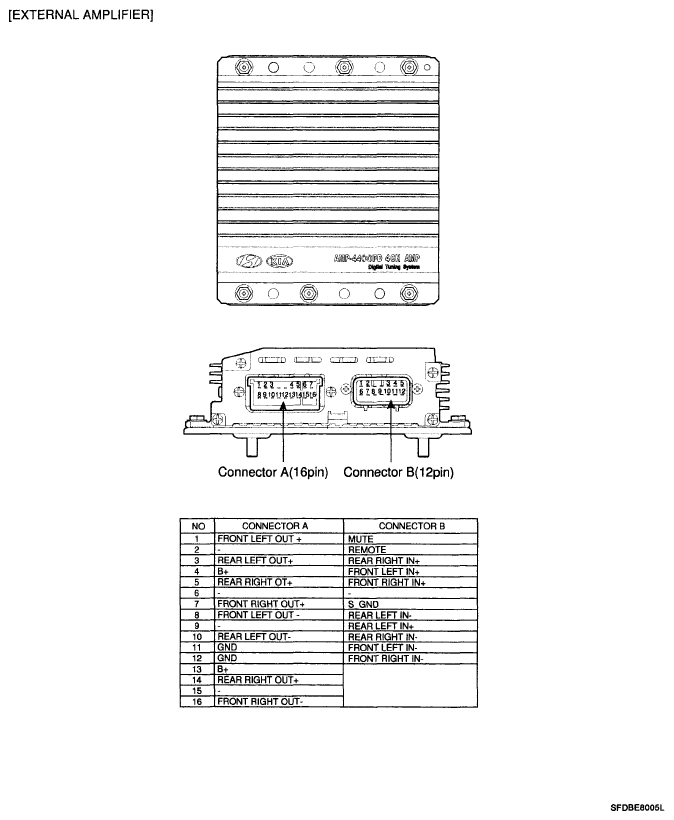

Fig 3: Identifying Audio Unit Connectors (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
