Repair and Diagnosis: Electrical: Horns: Installation: Adjustment

  1. Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.
    NOTE: After adjustment, apply a small amount of paint around the screw head to keep it from loosening.

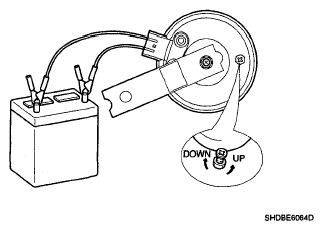

    Fig 1: Adjusting Tone Of Horn
    G05365332Courtesy of HYUNDAI MOTOR CO.
