Hyundai
›
2012
›
Elantra Touring GLS, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Camshaft Position Sensor (CMPS)
›
Circuit Diagram
Circuit Diagram

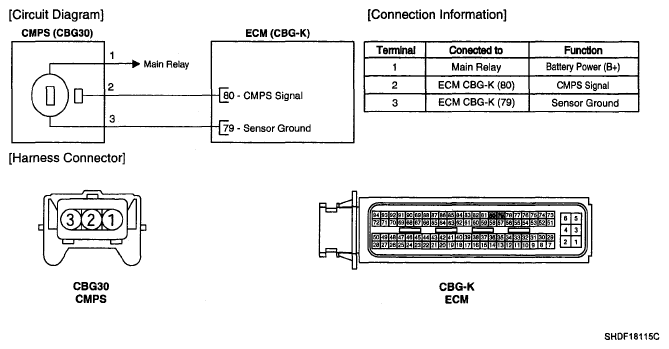

Fig 1: CMPS And ECM - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
