Crankshaft Position Sensor (CKPS): Waveform

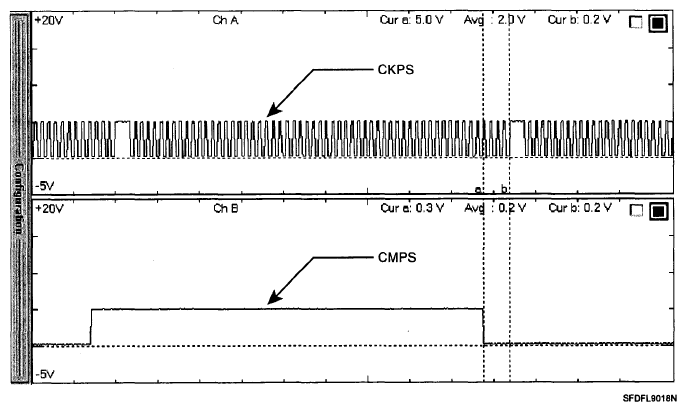

Fig 1: Screen Display - Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

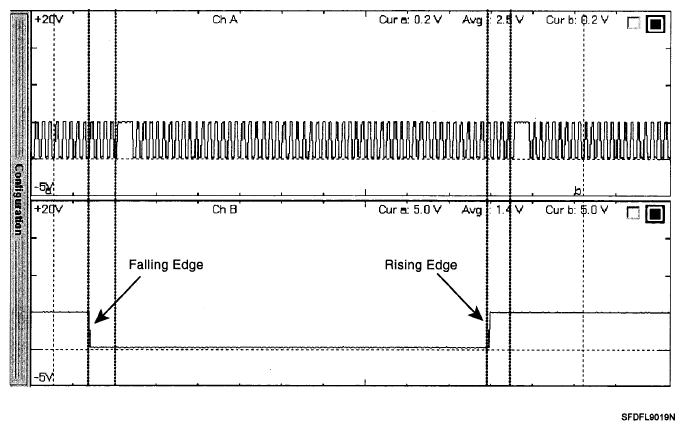

Fig 2: Screen Display - Falling Edge And Rising Edge

Courtesy of HYUNDAI MOTOR CO.
