Charging System: Alternator: Components

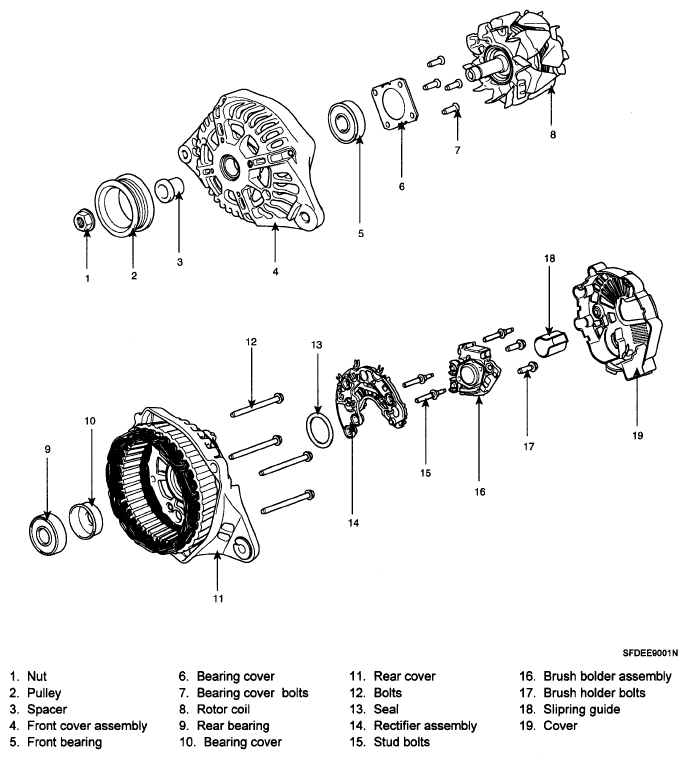

Fig 1: Identifying Alternator Components
G06135945Courtesy of HYUNDAI MOTOR CO.
