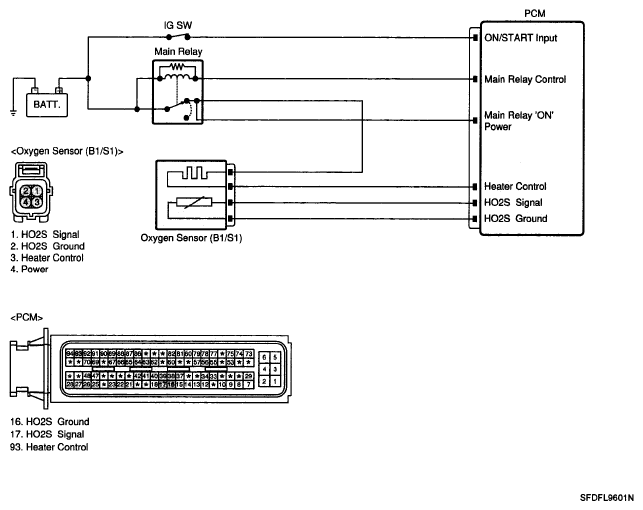

Home › Hyundai › 2012 › Elantra Touring GLS, Standard Trans › Repair and Diagnosis › Engine Performance › System › DTC Troubleshooting Procedures › Inspection Chart For Diagnostic Trouble Codes (DTC) › P0130: O2 Sensor Circuit (Bank 1/Sensor 1) › Diagnostic Circuit Diagram
