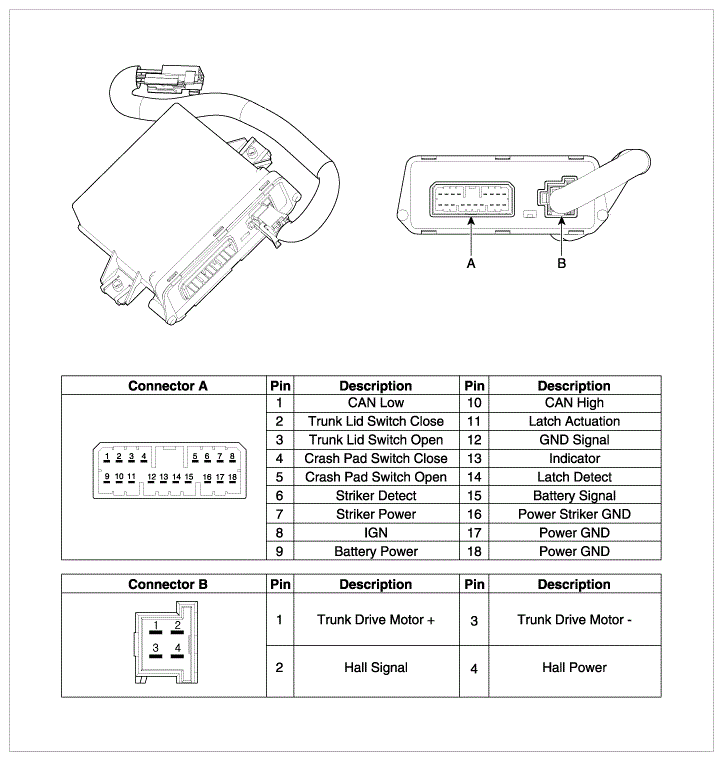

Home › Hyundai › 2012 › Equus Signature › Repair and Diagnosis (Single Page) › Body & Frame › Exterior Body Panels › Power Trunk Module › Power Trunk Module Drive Unit › Schematic Diagrams › Circuit Diagram
