Component Location

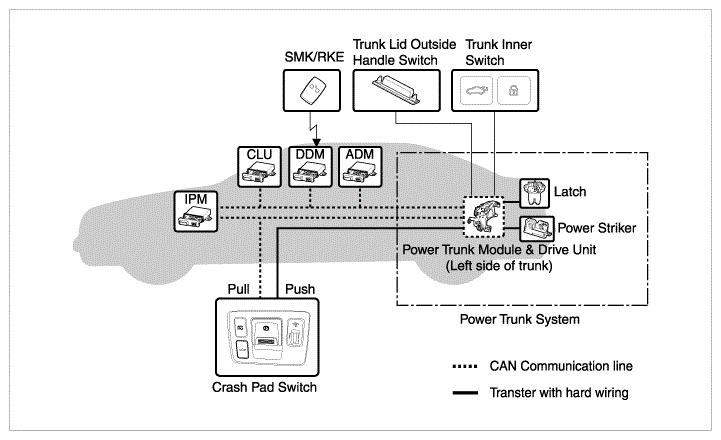

Fig 1: Identifying Power Trunk Module Components
G08831621Courtesy of HYUNDAI MOTOR AMERICA

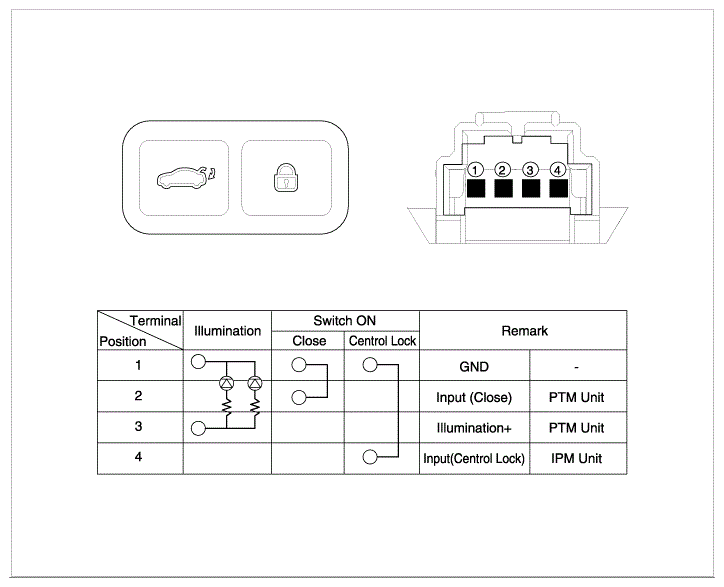

Fig 2: Power Trunk Module Terminals Continuity Reference Chart
G08831622Courtesy of HYUNDAI MOTOR AMERICA
