Home › Hyundai › 2012 › Equus Signature › Repair and Diagnosis (Single Page) › Brakes › Traction Control › Electronic Stability Control (ESC) System › ESC Control Unit › Components and Components Location › Components

Components and Components Location: Components

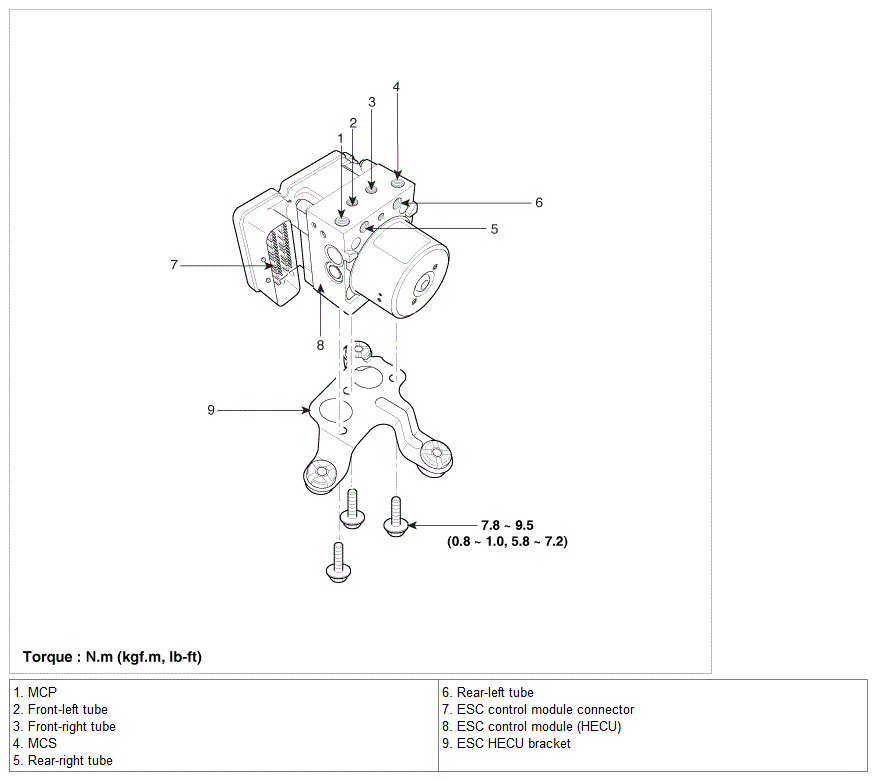

Fig 1: ESC Control Unit Components With Torque Specifications
G08833098Courtesy of HYUNDAI MOTOR AMERICA
