Home › Hyundai › 2012 › Equus Signature › Repair and Diagnosis › Accessories & Equipment › Communication Devices › Body Network System › Front Area Module (FAM) › Components and Components Location › Components

Components and Components Location: Components

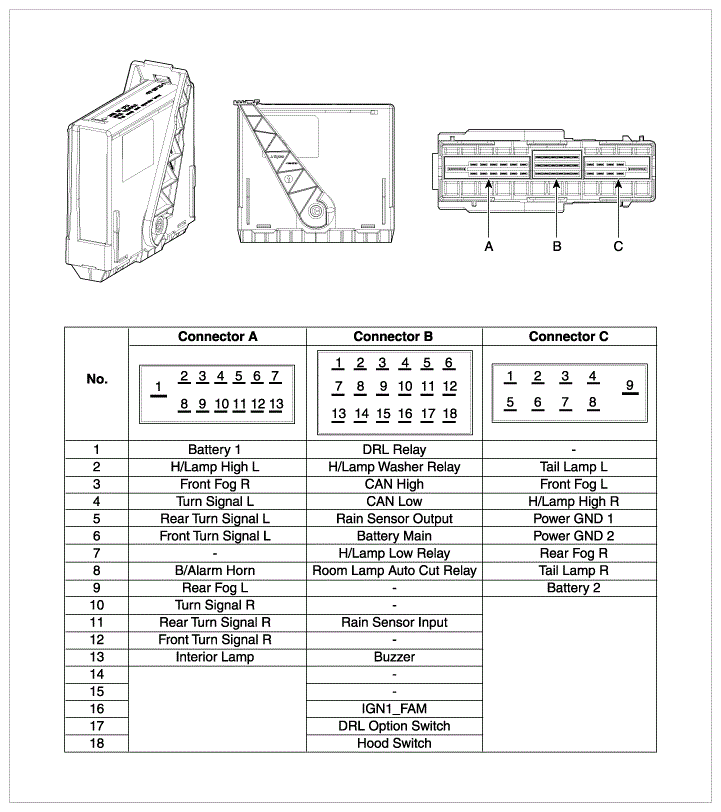

Fig 1: Identifying Front Area Module Connectors
G08831865Courtesy of HYUNDAI MOTOR AMERICA
