Front Body A

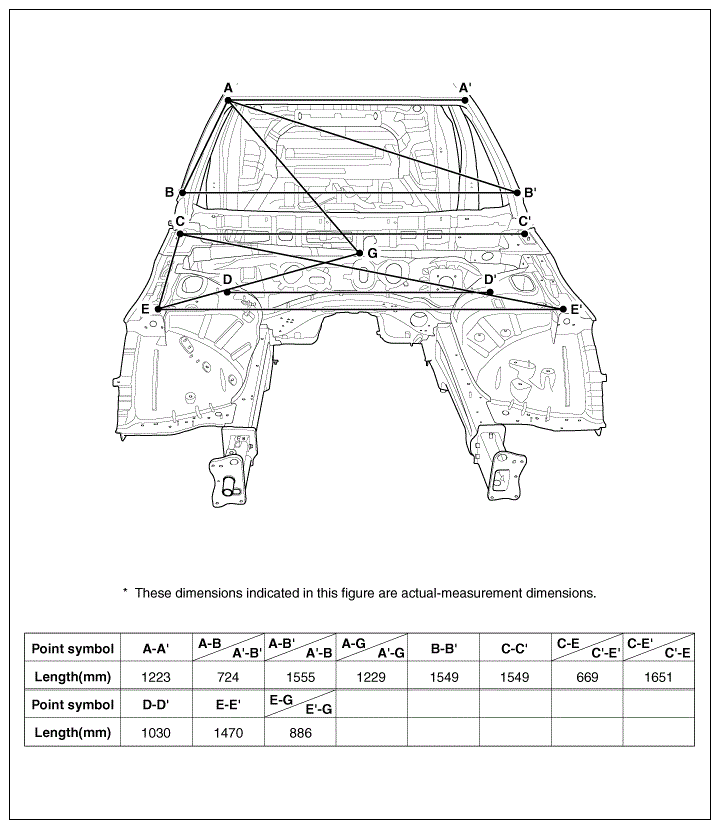

Fig 1: Identifying Front Body A Actual Measurement Dimensions
G08830885Courtesy of HYUNDAI MOTOR AMERICA

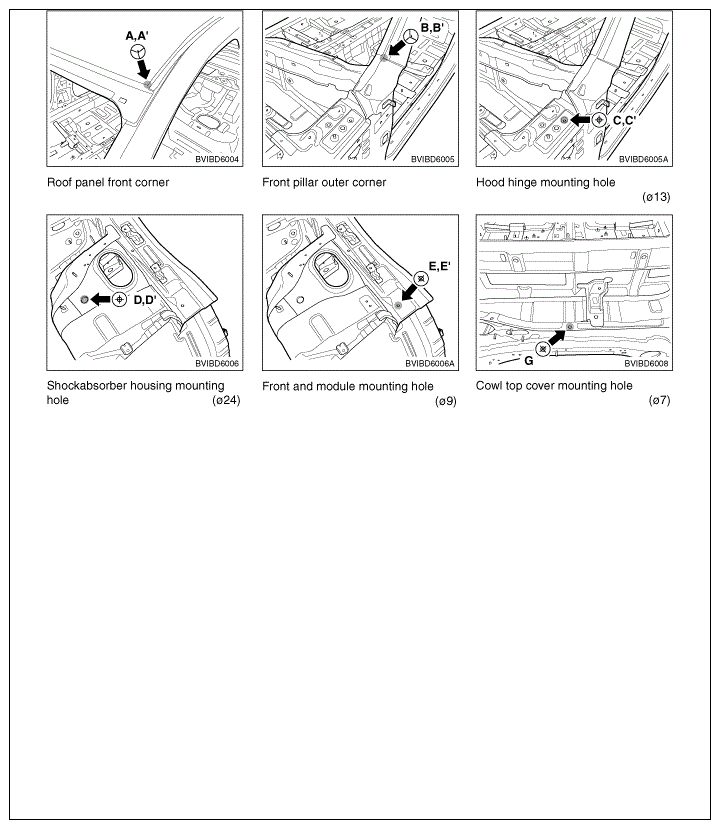

Fig 2: Locating Front Body A Dimension Measurement Points
G08830886Courtesy of HYUNDAI MOTOR AMERICA
