Interior D

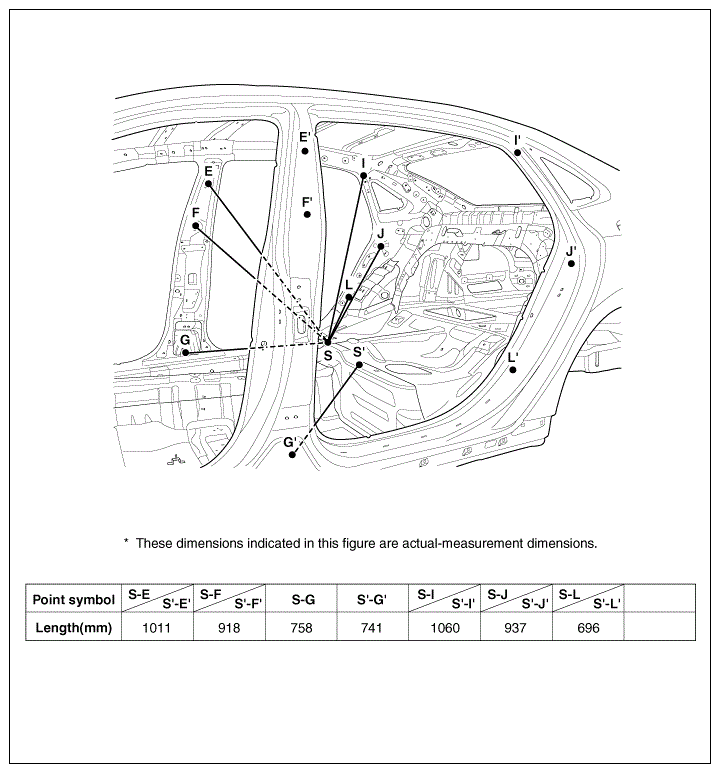

Fig 1: Identifying Interior D Actual Measurement Dimensions
G08830905Courtesy of HYUNDAI MOTOR AMERICA

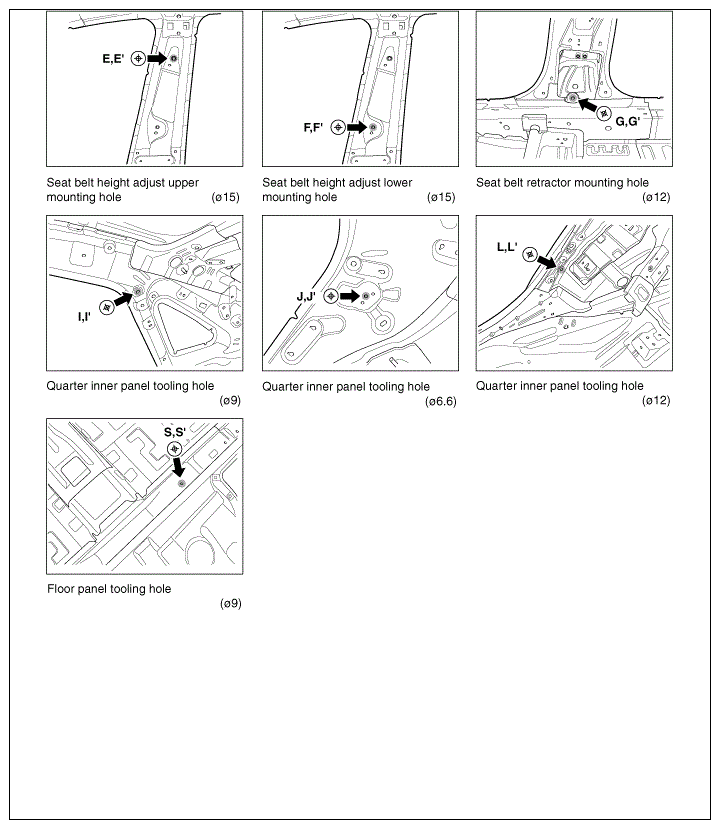

Fig 2: Locating Interior D Dimension Measurement Points
G08830906Courtesy of HYUNDAI MOTOR AMERICA
