Projected Dimensions
Projected Dimensions

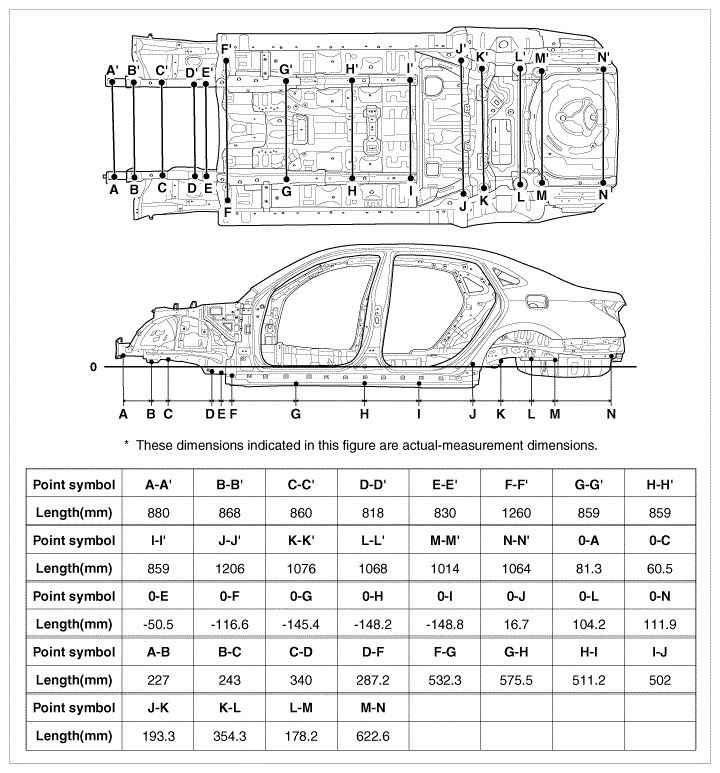

Fig 1: Identifying Under Body Projected Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

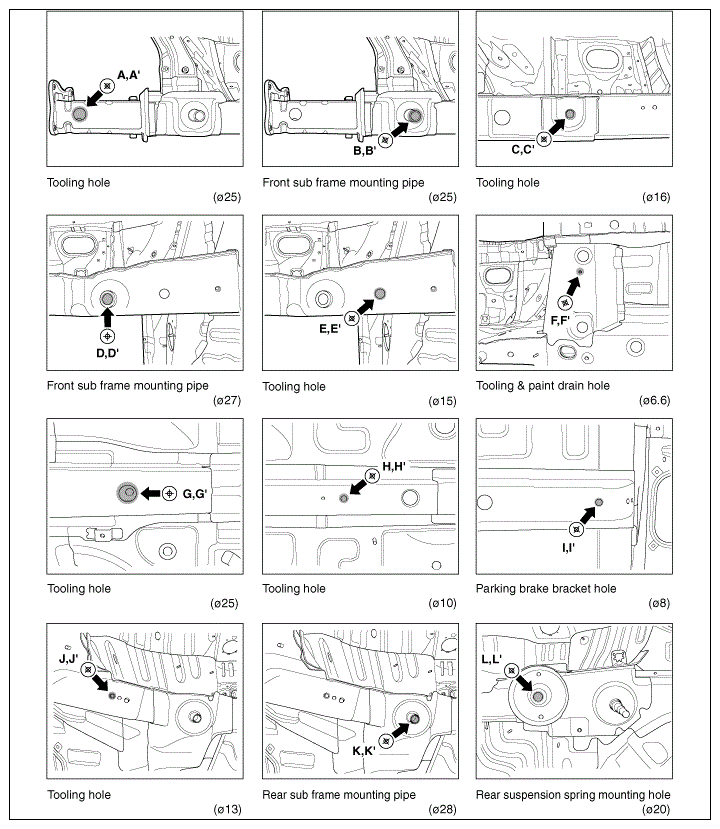

Fig 2: Locating Under Body Projected Dimensions Measurement Points (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

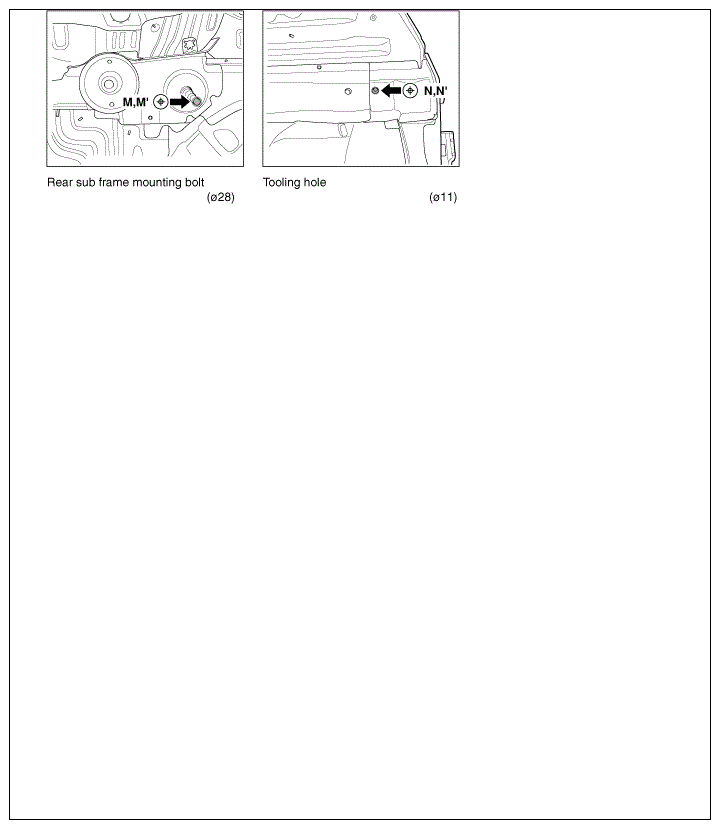

Fig 3: Locating Under Body Projected Dimensions Measurement Points (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
