Monitor Scantool Data

Headrest Auto Adjust setting
1. Connect scantool to Data Link Connector (DLC).
2. IG "ON" & Engine "OFF".
3. Select "Headrest Auto Adjust setting" in Inspection/Test option.
4. Start Headrest Auto Adjust setting.

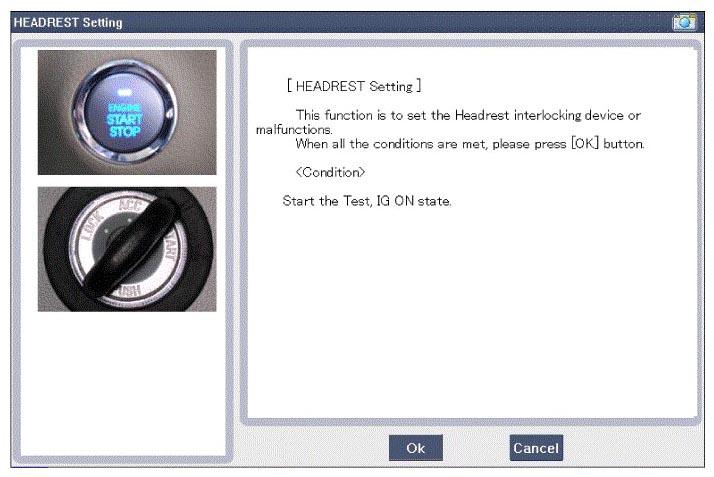

  Fig 1: Display - Starting Headrest Auto Adjust Setting (During IG On)
  Courtesy of HYUNDAI MOTOR AMERICA

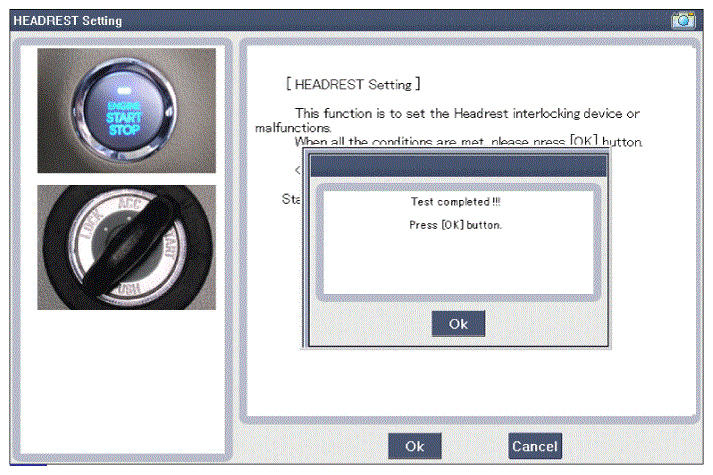

  Fig 2: Display - Headrest Auto Adjust Setting Completed
  Courtesy of HYUNDAI MOTOR AMERICA
5. Is Headrest Auto Adjust setting completed?
  YES

  Fault is intermittent caused by poor contact in the sensor's and/or PSM's connector or was repaired and PSM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Go to "COMPONENT INSPECTION " procedure.
