Components and Components Location: Components

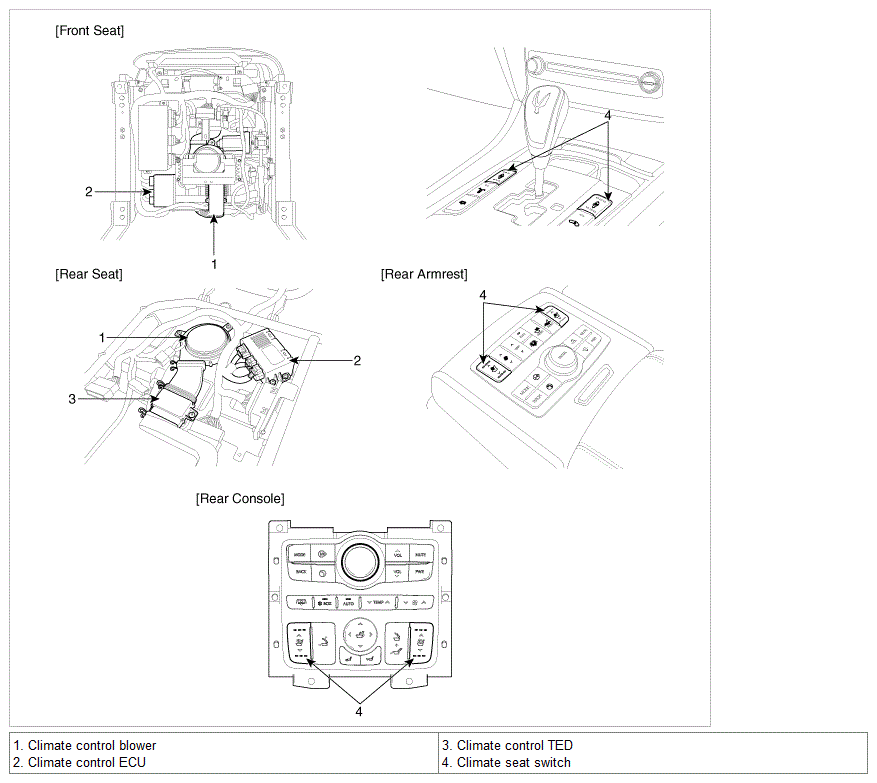

Fig 1: Identifying Climate Seat Unit And Related Components
G08831454Courtesy of HYUNDAI MOTOR AMERICA
